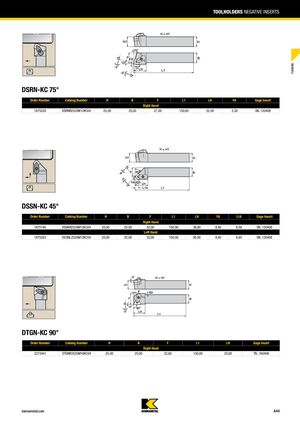

Державки резцов с отрицательными пластинами
DSRN-KC 75°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 1875228 | DSRNR2525M12KC04 | 25,00 | 25,00 | 27,00 | 150,00 | 32,00 | 3,30 | SN..120408 |
DSSN-KC 45°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | L1A | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1875195 | DSSNR2525M12KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 36,00 | 8,40 | 9,58 | SN..120408 |
| Левая рука | |||||||||
| 1875203 | DSSNL2525M12KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 36,00 | 8,40 | 8,65 | SN..120408 |
DTGN-KC 90°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 2273441 | DTGNR2525M16KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 25,00 | TN..160408 |
