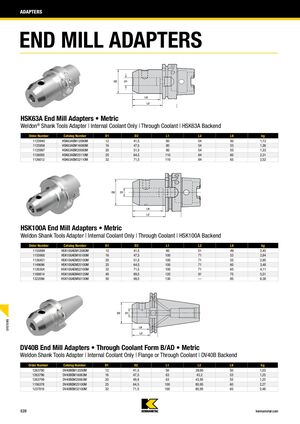

Адаптеры
Адаптеры для концевых фрез
Адаптеры для концевых фрез HSK63A • Метрические
Адаптер для инструмента с хвостовиком Weldon® | Только внутренняя подача СОЖ | Со сквозной подачей СОЖ | Хвостовик HSK63A
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | L9 | кг |
|---|---|---|---|---|---|---|---|
| 1125940 | HSK63AEM12080M | 12 | 41,5 | 80 | 54 | 50 | 1,13 |
| 1125958 | HSK63AEM16080M | 16 | 47,5 | 80 | 54 | 53 | 1,26 |
| 1125997 | HSK63AEM20080M | 20 | 51,5 | 80 | 54 | 55 | 1,33 |
| 1126005 | HSK63AEM25110M | 25 | 64,5 | 110 | 84 | 60 | 2,31 |
| 1126012 | HSK63AEM32110M | 32 | 71,5 | 110 | 84 | 65 | 2,52 |
Адаптеры для концевых фрез HSK100A • Метрические
Адаптер для инструмента с хвостовиком Weldon | Только внутренняя подача СОЖ | Со сквозной подачей СОЖ | Хвостовик HSK100A
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | L9 | кг |
|---|---|---|---|---|---|---|---|
| 1155899 | HSK100AEM12080M | 12 | 41,5 | 80 | 51 | 49 | 2,45 |
| 1155900 | HSK100AEM16100M | 16 | 47,5 | 100 | 71 | 53 | 2,84 |
| 1126421 | HSK100AEM20100M | 20 | 51,5 | 100 | 71 | 55 | 2,95 |
| 1149696 | HSK100AEM25100M | 25 | 64,5 | 100 | 71 | 60 | 3,48 |
| 1126304 | HSK100AEM32100M | 32 | 71,5 | 100 | 71 | 65 | 4,11 |
| 1188814 | HSK100AEM40120M | 40 | 89,5 | 120 | 91 | 75 | 5,51 |
| 1322096 | HSK100AEM50130M | 50 | 99,5 | 130 | — | 85 | 6,38 |
Адаптеры для концевых фрез DV40B • Форма B/AD со сквозной подачей СОЖ • Метрические
Адаптер для инструмента с хвостовиком Weldon | Только внутренняя подача СОЖ | Фланец или со сквозной подачей СОЖ | Хвостовик DV40B
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | L9 | кг |
|---|---|---|---|---|---|---|---|
| 1263790 | DV40BEM12050M | 12 | 41,5 | 50 | 29,95 | 50 | 1,03 |
| 1263796 | DV40BEM16063M | 16 | 47,5 | 63 | 43,2 | 53 | 1,25 |
| 1263799 | DV40BEM20063M | 20 | 49,8 | 63 | 43,95 | 55 | 1,25 |
| 1156378 | DV40BEM25100M | 25 | 64,5 | 100 | 80,95 | 60 | 2,27 |
| 1237816 | DV40BEM32100M | 32 | 71,5 | 100 | 80,95 | 65 | 2,48 |
