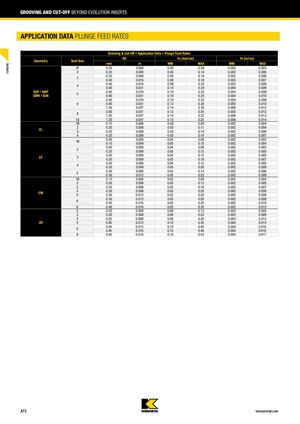

GROOVING AND CUT-OFF BEYOND EVOLUTION INSERTS APPLICATION DATA PLUNGE FEED RATES Grooving & Cut-Off • Application Data • Plunge Feed Rates RR fn (mm/rev) fn (in/rev) Geometry Seat Size mm in MIN MAX MIN MAX TURNING 1F 0.20 0.008 0.05 0.08 0.002 0.003 2 0.20 0.008 0.05 0.14 0.002 0.006 0.20 0.008 0.05 0.16 0.002 0.006 3 0.40 0.016 0.08 0.18 0.003 0.007 0.40 0.016 0.08 0.22 0.003 0.009 4 0.80 0.031 0.10 0.24 0.004 0.009 GUP / GMP 0.40 0.016 0.10 0.23 0.004 0.009 5 GMN / GUN 0.80 0.031 0.10 0.25 0.004 0.010 0.40 0.016 0.10 0.22 0.004 0.009 6 0.80 0.031 0.12 0.26 0.005 0.010 1.20 0.047 0.14 0.30 0.006 0.012 0.80 0.031 0.12 0.30 0.005 0.012 8 1.20 0.047 0.14 0.32 0.006 0.013 10 1.20 0.047 0.15 0.35 0.006 0.014 1B 0.15 0.006 0.05 0.09 0.002 0.004 2 0.20 0.008 0.05 0.11 0.002 0.004 CL 3 0.20 0.008 0.05 0.14 0.002 0.006 4 0.20 0.008 0.05 0.18 0.002 0.007 0.00 0.000 0.04 0.08 0.002 0.003 1B 0.10 0.004 0.05 0.10 0.002 0.004 0.00 0.000 0.04 0.08 0.002 0.003 2 0.20 0.008 0.05 0.13 0.002 0.005 0.00 0.000 0.04 0.12 0.002 0.005 CF 3 0.20 0.008 0.05 0.18 0.002 0.007 0.00 0.000 0.04 0.12 0.002 0.005 4 0.20 0.008 0.05 0.20 0.002 0.008 0.00 0.000 0.04 0.14 0.002 0.006 5 0.30 0.012 0.05 0.23 0.002 0.009 1B 0.15 0.006 0.05 0.09 0.002 0.004 2 0.20 0.008 0.05 0.13 0.002 0.005 3 0.20 0.008 0.05 0.18 0.002 0.007 4 0.20 0.008 0.05 0.20 0.002 0.008 CM 5 0.30 0.012 0.05 0.20 0.002 0.008 0.30 0.012 0.05 0.20 0.002 0.008 6 0.40 0.016 0.05 0.25 0.002 0.010 8 0.40 0.016 0.05 0.30 0.002 0.012 2 0.20 0.008 0.08 0.13 0.003 0.005 3 0.20 0.008 0.08 0.23 0.003 0.009 4 0.20 0.008 0.08 0.30 0.003 0.012 CR 5 0.30 0.012 0.10 0.35 0.004 0.014 0.30 0.012 0.10 0.40 0.004 0.016 6 0.40 0.016 0.10 0.40 0.004 0.016 8 0.40 0.016 0.10 0.43 0.004 0.017 A73 kennametal.com
