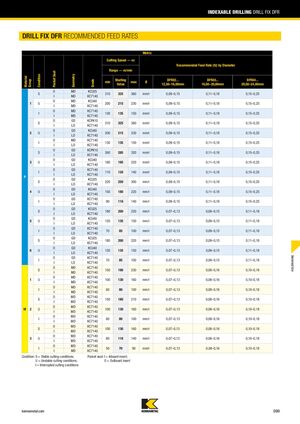

INDEXABLE DRILLING DRILL FIX DFR DRILL FIX DFR RECOMMENDED FEED RATES Metric Cutting Speed — vc Recommended Feed Rate (fz) by Diameter Range — m/min Pocket Seat Geometry Condition Material Starting DFR02... DFR03... DFR04... Group Grade min max Ø Value 12,50–16,00mm 16,50–20,00mm 20,50–24,00mm O MD KCU25 S 310 325 360 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I MD KC7140 O MD KCU40 1 U 200 215 230 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I MD KC7140 O MD KC7140 I 130 135 150 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I MD KC7140 O GD KCPK10 S 310 325 360 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KCU40 2 U 200 215 230 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O MD KC7140 I 130 135 150 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KCPK10 S 260 285 320 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KCU40 3 U 180 195 220 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KC7140 I 110 120 140 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 P O GD KCU25 S 220 250 300 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KCU40 4 U 150 180 220 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KC7140 I 90 110 140 mm/r 0,09–0,15 0,11–0,18 0,15–0,25 I LD KC7140 O GD KCU25 S 180 200 220 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 O GD KCU40 5 U 120 135 150 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 O GD KC7140 I 70 85 100 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 O GD KCU25 S 180 200 220 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 O GD KCU40 6 U 120 135 150 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 HOLEMAKING O GD KC7140 I 70 85 100 mm/r 0,07–0,13 0,09–0,15 0,11–0,18 I LD KC7140 O MD KC7140 S 150 190 230 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 1 U 100 130 160 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 I 60 80 100 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 S 150 180 210 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 M 2 U 100 130 160 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 I 60 80 100 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 S 100 130 160 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 3 U 80 110 140 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 O MD KC7140 I 50 70 90 mm/r 0,07–0,13 0,08–0,16 0,10–0,18 I MD KC7140 Condition: S = Stable cutting conditions; Pocket seat: I = Inboard insert; U = Unstable cutting conditions; O = Outboard insert I = Interrupted cutting conditions kennametal.com D80
