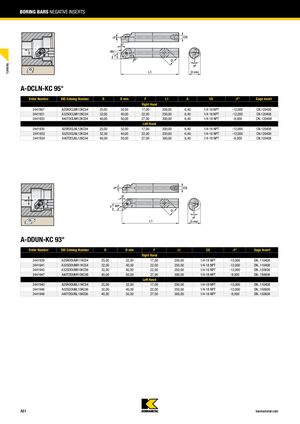

Расточные резцы с отрицательными пластинами
A-DCLN-KC 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 2441867 | A25RDCLNR12KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | CN.120408 |
| 2441931 | A32SDCLNR12KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -12,000 | CN.120408 |
| 2441933 | A40TDCLNR12KC04 | 40,00 | 50,00 | 27,00 | 300,00 | 6,40 | 1/4-18 NPT | -9,000 | CN..120408 |
| Левая рука | |||||||||
| 2441930 | A25RDCLNL12KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | CN.120408 |
| 2441932 | A32SDCLNL12KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -12,000 | CN.120408 |
| 2441934 | A40TDCLNL12KC04 | 40,00 | 50,00 | 27,00 | 300,00 | 6,40 | 1/4-18 NPT | -9,000 | CN.120408 |
A-DDUN-KC 93°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 2441939 | A25RDDUNR11KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 1/4-18 NPT | -12,000 | DN..110408 |
| 2441941 | A32SDDUNR11KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 1/4-18 NPT | -12,000 | DN..110408 |
| 2441945 | A32SDDUNR15KC06 | 32,00 | 40,00 | 22,00 | 250,00 | 1/4-18 NPT | -12,000 | DN..150608 |
| 2441947 | A40TDDUNR15KC06 | 40,00 | 50,00 | 27,00 | 300,00 | 1/4-18 NPT | -9,000 | DN..150608 |
| Левая рука | ||||||||
| 2441940 | A25RDDUNL11KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 1/4-18 NPT | -12,000 | DN..110408 |
| 2441946 | A32SDDUNL15KC06 | 32,00 | 40,00 | 22,00 | 250,00 | 1/4-18 NPT | -12,000 | DN..150608 |
| 2441948 | A40TDDUNL15KC06 | 40,00 | 50,00 | 27,00 | 300,00 | 1/4-18 NPT | -9,000 | DN..150608 |
