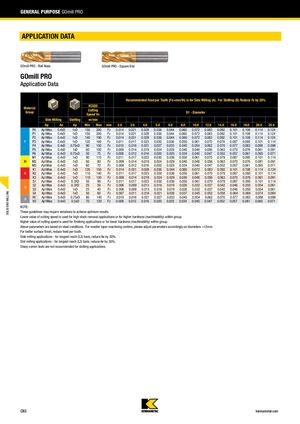

GENERAL PURPOSE GOmill PRO APPLICATION DATA GOmill PRO - Ball Nose GOmill PRO - Square End GOmill PRO Application Data Recommended Feed per Tooth (Fz=mm/th) is for Side Milling (A). For Slotting (B) Reduce Fz by 20% KCU20 Material Cutting Group D1 - Diameter Speed Vc Side Milling Slotting m/min Ap Ae Ap Min Max mm 2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 25.0 P0 Ap1Max 0.4xD 1xD 150 200 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.101 0.108 0.114 0.124 P1 Ap1Max 0.4xD 1xD 150 200 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.101 0.108 0.114 0.124 P2 Ap1Max 0.4xD 1xD 140 190 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.101 0.108 0.114 0.124 P P3 Ap1Max 0.4xD 1xD 120 160 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.087 0.095 0.101 0.114 P4 Ap1Max 0.4xD 0.75xD 90 150 Fz 0.010 0.016 0.021 0.027 0.033 0.045 0.054 0.062 0.070 0.077 0.083 0.088 0.098 P5 Ap1Max 0.4xD 1xD 60 100 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.070 0.076 0.081 0.091 P6 Ap1Max 0.4xD 0.75xD 50 75 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.057 0.061 0.065 0.071 M1 Ap1Max 0.4xD 1xD 90 115 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.087 0.095 0.101 0.114 M M2 Ap1Max 0.4xD 1xD 60 80 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.070 0.076 0.081 0.091 M3 Ap1Max 0.4xD 1xD 60 70 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.057 0.061 0.065 0.071 K1 Ap1Max 0.4xD 1xD 120 150 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.101 0.108 0.114 0.124 K K2 Ap1Max 0.4xD 1xD 110 140 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.087 0.095 0.101 0.114 K3 Ap1Max 0.4xD 1xD 110 130 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.070 0.076 0.081 0.091 S1 Ap1Max 0.4xD 0.3XD 50 90 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.087 0.095 0.101 0.114 S2 Ap1Max 0.4xD 0.3XD 25 50 Fz 0.006 0.009 0.013 0.016 0.019 0.026 0.032 0.037 0.042 0.046 0.050 0.054 0.061 S S3 Ap1Max 0.4xD 1xD 25 40 Fz 0.006 0.009 0.013 0.016 0.019 0.026 0.032 0.037 0.042 0.046 0.050 0.054 0.061 SOLID END MILLING S4 Ap1Max 0.4xD 1xD 50 60 Fz 0.007 0.011 0.016 0.021 0.026 0.037 0.045 0.052 0.058 0.064 0.069 0.074 0.084 H1 Ap1Max 0.4xD 0.75xD 80 140 Fz 0.010 0.016 0.021 0.027 0.033 0.045 0.054 0.062 0.070 0.077 0.083 0.088 0.098 H H2 Ap1Max 0.4xD 0.5xD 70 120 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.057 0.061 0.065 0.071 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on diameters >12mm. For better surface finish, reduce feed per tooth. Side milling applications - for longest reach (L3) tools, reduce Ae by 30%. Slot milling applications - for longest reach (L3) tools, reduce Ae by 30%. Sharp corner tools are not recommended for slotting applications. C83 kennametal.com
