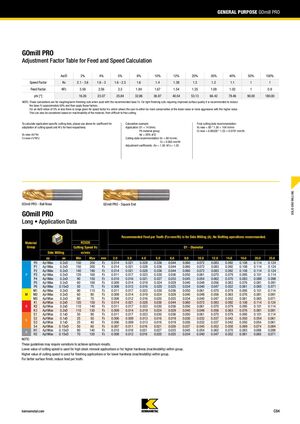

GENERAL PURPOSE GOmill PRO GOmill PRO Adjustment Factor Table for Feed and Speed Calculation Ae/D 2% 4% 5% 8% 10% 12% 20% 30% 40% 50% 100% Speed Factor Kv 2.1 - 3.6 1.6 - 3 1.6 - 2.5 1.6 1.4 1.38 1.3 1.2 1.1 1 1 Feed Factor KFz 3.58 2.56 2.3 1.84 1.67 1.54 1.25 1.09 1.02 1 0.9 phi [°] 16.26 23.07 25.84 32.86 36.87 40.54 53.13 66.42 78.46 90.00 180.00 NOTE: These calculations are for roughing/semi-finishing cuts when used with the recommended base Fz. For light finishing cuts requiring improved surface quality it is recommended to reduce the base Fz approximately 50% and then apply these factors. For an Ae/D ration of 5% or less there is range given for speed factor Kv, which allows the user to either be more conservative at the lower value or more aggressive with the higher value. This can also be considered based on machinability of the material, from difficult to free cutting. To calculate application specific cutting data, please use above Kv coefficient for Calculation example: Final cutting data recommendation: adaptation of cutting speed and KFz for feed respectively. Application: D1 = 14.0mm; Vc new = 80 * 1.30 = 104 m/min P5 material group; Fz new = 0.06328 * 1.25 = 0.0791 mm/th Vc new=Vc*Kv Ae = 20% of D Fz new=Fz*KFz Cutting data recommendation: Vc = 80 m/min; Fz = 0.063 mm/th Adjustment coefficients: ;Kv = 1.30; KFz = 1.25 SOLID END MILLING GOmill PRO - Ball Nose GOmill PRO - Square End GOmill PRO Long • Application Data Recommended Feed per Tooth (Fz=mm/th) is for Side Milling (A). No Slotting operations recommended. Material KCU20 Group Cutting Speed Vc D1 - Diameter Side Milling m/min ap ae Min Max mm 2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 18.0 20.0 25.0 P0 Ap1Max 0.2xD 150 200 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.108 0.114 0.124 P1 Ap1Max 0.2xD 150 200 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.108 0.114 0.124 P2 Ap1Max 0.2xD 140 190 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.108 0.114 0.124 P P3 Ap1Max 0.2xD 120 160 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.095 0.101 0.114 P4 Ap1Max 0.2xD 90 150 Fz 0.010 0.016 0.021 0.027 0.033 0.045 0.054 0.062 0.070 0.083 0.088 0.098 P5 Ap1Max 0.2xD 60 100 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.076 0.081 0.091 P6 Ap1Max 0.15xD 50 75 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.061 0.065 0.071 M1 Ap1Max 0.2xD 90 115 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.095 0.101 0.114 M M2 Ap1Max 0.2xD 60 80 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.076 0.081 0.091 M3 Ap1Max 0.2xD 60 70 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.061 0.065 0.071 K1 Ap1Max 0.2xD 120 150 Fz 0.014 0.021 0.028 0.036 0.044 0.060 0.072 0.083 0.092 0.108 0.114 0.124 K K2 Ap1Max 0.2xD 110 140 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.095 0.101 0.114 K3 Ap1Max 0.2xD 110 130 Fz 0.009 0.014 0.019 0.024 0.029 0.040 0.048 0.056 0.063 0.076 0.081 0.091 S1 Ap1Max 0.1xD 50 90 Fz 0.011 0.017 0.023 0.030 0.036 0.050 0.061 0.070 0.079 0.095 0.101 0.114 S2 Ap1Max 0.1xD 25 50 Fz 0.006 0.009 0.013 0.016 0.019 0.026 0.032 0.037 0.042 0.050 0.054 0.061 S S3 Ap1Max 0.1xD 25 40 Fz 0.006 0.009 0.013 0.016 0.019 0.026 0.032 0.037 0.042 0.050 0.054 0.061 S4 Ap1Max 0.15xD 50 60 Fz 0.007 0.011 0.016 0.021 0.026 0.037 0.045 0.052 0.058 0.069 0.074 0.084 H1 Ap1Max 0.15xD 80 140 Fz 0.010 0.016 0.021 0.027 0.033 0.045 0.054 0.062 0.070 0.083 0.088 0.098 H H2 Ap1Max 0.15xD 70 120 Fz 0.008 0.012 0.016 0.020 0.025 0.034 0.040 0.047 0.052 0.061 0.065 0.071 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. For better surface finish, reduce feed per tooth. kennametal.com C84
