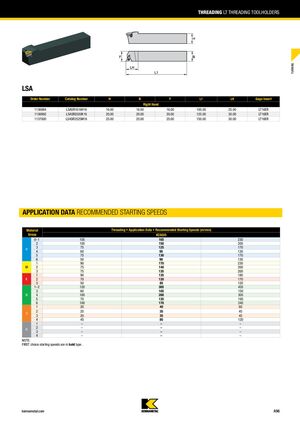

Резьбовые державки LT
LSA
| Номер заказа | Номер каталога | H | B | F | L1 | LH | Измерительная пластина |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| 1136984 | LSASR1616H16 | 16.00 | 16.00 | 16.00 | 100.00 | 25.00 | LT16ER |
| 1136992 | LSASR2020K16 | 20.00 | 20.00 | 20.00 | 125.00 | 30.00 | LT16ER |
| 1137000 | LSASR2525M16 | 25.00 | 25.00 | 25.00 | 150.00 | 30.00 | LT16ER |
Данные применения
Рекомендуемые начальные скорости резьбонарезания (м/мин)
| Группа материала | KC5025 | ||
|---|---|---|---|
| P | 0–1: 105 | 165 | 230 |
| 2: 100 | 150 | 200 | |
| 3: 75 | 125 | 170 | |
| 4: 60 | 95 | 130 | |
| 5: 75 | 130 | 170 | |
| 6: 50 | 90 | 130 | |
| M | 1: 90 | 170 | 230 |
| 2: 75 | 140 | 200 | |
| 3: 75 | 135 | 200 | |
| K | 1: 90 | 135 | 180 |
| 2: 70 | 120 | 170 | |
| 3: 50 | 85 | 120 | |
| N | 1–2: 120 | 305 | 455 |
| 3: 60 | 105 | 150 | |
| 4: 100 | 200 | 305 | |
| 5: 70 | 135 | 195 | |
| 6: 100 | 170 | 245 | |
| S | 1: 20 | 40 | 60 |
| 2: 20 | 35 | 45 | |
| 3: 20 | 35 | 45 | |
| 4: 45 | 85 | 120 | |
| H | 1: – | – | – |
| 2: – | – | – | |
| 3: – | – | – | |
| 4: – | – | – | |
Примечание: Рекомендуемые начальные скорости по умолчанию выделены полужирным шрифтом.
