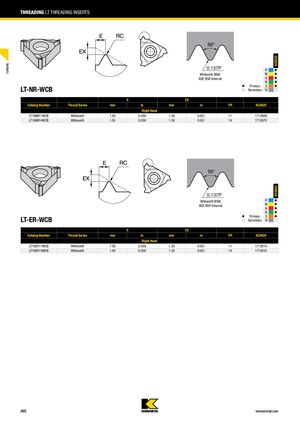

Резьбовые пластины LT
Витворт BSW, BSF, BSP-Внутренняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Витки/дюйм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16NR11WCB | Витворт | 1.50 | 0.059 | 1.30 | 0.051 | 11 | 1712669 |
| LT16NR14WCB | Витворт | 1.50 | 0.059 | 1.30 | 0.051 | 14 | 1712670 |
Витворт BSW, BSF, BSP-Внешняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Витки/дюйм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16ER11WCB | Витворт | 1.50 | 0.059 | 1.30 | 0.051 | 11 | 1712614 |
| LT16ER14WCB | Витворт | 1.50 | 0.059 | 1.30 | 0.051 | 14 | 1712616 |
