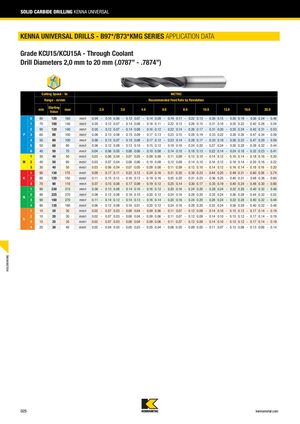

СВЕРЛА KENNA UNIVERSAL - ДАННЫЕ ПО ПРИМЕНЕНИЮ
Марка KCU15/KCU15A - Внутренняя подача СОЖ
Диаметры сверл: 2,0 мм до 20 мм
Скорость резания (Vc) и рекомендуемая подача на оборот
| Материал | Группа | Минимум (м/мин) | Начальное значение (м/мин) | Максимум (м/мин) | Диаметр сверла (мм) — Подача на оборот (мм/об) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 3.0 | 4.0 | 6.0 | 8.0 | 10.0 | 12.0 | 16.0 | 20.0 | |||||
| P | 0 | 80 | 120 | 160 | 0.04-0.10 | 0.06-0.12 | 0.07-0.14 | 0.09-0.19 | 0.11-0.22 | 0.13-0.26 | 0.15-0.30 | 0.19-0.36 | 0.24-0.46 |
| 1 | 70 | 100 | 140 | 0.05-0.12 | 0.07-0.14 | 0.08-0.16 | 0.11-0.22 | 0.13-0.26 | 0.15-0.31 | 0.18-0.35 | 0.22-0.42 | 0.28-0.54 | |
| 2 | 90 | 120 | 140 | 0.05-0.12 | 0.07-0.14 | 0.08-0.16 | 0.12-0.22 | 0.14-0.26 | 0.17-0.31 | 0.20-0.35 | 0.24-0.42 | 0.31-0.53 | |
| 3 | 60 | 80 | 100 | 0.06-0.13 | 0.08-0.15 | 0.09-0.17 | 0.13-0.23 | 0.15-0.28 | 0.19-0.33 | 0.22-0.38 | 0.26-0.47 | 0.34-0.59 | |
| 4 | 50 | 80 | 100 | 0.06-0.13 | 0.07-0.15 | 0.08-0.17 | 0.12-0.23 | 0.14-0.28 | 0.17-0.33 | 0.19-0.38 | 0.23-0.47 | 0.29-0.59 | |
| 5 | 50 | 60 | 80 | 0.06-0.12 | 0.08-0.13 | 0.10-0.15 | 0.12-0.19 | 0.16-0.24 | 0.20-0.27 | 0.24-0.30 | 0.28-0.38 | 0.32-0.44 | |
| P | 6 | 40 | 50 | 70 | 0.04-0.06 | 0.05-0.08 | 0.06-0.10 | 0.08-0.14 | 0.10-0.18 | 0.13-0.22 | 0.14-0.24 | 0.18-0.32 | 0.23-0.41 |
| M | 1 | 30 | 40 | 50 | 0.03-0.06 | 0.04-0.07 | 0.05-0.09 | 0.08-0.11 | 0.09-0.12 | 0.10-0.14 | 0.12-0.16 | 0.14-0.18 | 0.16-0.20 |
| 2 | 40 | 50 | 60 | 0.03-0.07 | 0.04-0.08 | 0.06-0.10 | 0.08-0.12 | 0.09-0.14 | 0.10-0.16 | 0.12-0.18 | 0.14-0.20 | 0.16-0.22 | |
| 3 | 30 | 40 | 50 | 0.03-0.06 | 0.04-0.07 | 0.05-0.09 | 0.08-0.11 | 0.09-0.12 | 0.10-0.14 | 0.12-0.16 | 0.14-0.18 | 0.16-0.20 | |
| K | 1 | 90 | 130 | 170 | 0.09-0.17 | 0.11-0.22 | 0.12-0.24 | 0.16-0.31 | 0.20-0.38 | 0.23-0.44 | 0.25-0.49 | 0.31-0.60 | 0.38-0.74 |
| 2 | 80 | 120 | 150 | 0.11-0.15 | 0.12-0.16 | 0.13-0.19 | 0.16-0.25 | 0.20-0.31 | 0.23-0.36 | 0.25-0.40 | 0.31-0.48 | 0.38-0.60 | |
| 3 | 70 | 90 | 110 | 0.07-0.15 | 0.08-0.17 | 0.09-0.19 | 0.12-0.25 | 0.14-0.30 | 0.17-0.35 | 0.19-0.40 | 0.24-0.48 | 0.30-0.60 | |
| N | 1 | 90 | 230 | 315 | 0.06-0.13 | 0.08-0.14 | 0.10-0.16 | 0.12-0.20 | 0.16-0.24 | 0.20-0.28 | 0.24-0.32 | 0.28-0.40 | 0.32-0.48 |
| 2 | 90 | 225 | 270 | 0.06-0.12 | 0.08-0.16 | 0.10-0.20 | 0.12-0.24 | 0.16-0.28 | 0.20-0.32 | 0.24-0.36 | 0.28-0.44 | 0.32-0.52 | |
| 3 | 90 | 180 | 270 | 0.11-0.14 | 0.12-0.14 | 0.13-0.16 | 0.14-0.20 | 0.16-0.24 | 0.20-0.28 | 0.24-0.32 | 0.28-0.40 | 0.32-0.44 | |
| 4 | 90 | 135 | 180 | 0.06-0.12 | 0.08-0.16 | 0.01-0.20 | 0.12-0.24 | 0.16-0.28 | 0.20-0.32 | 0.24-0.36 | 0.28-0.40 | 0.32-0.48 | |
| S | 1 | 10 | 20 | 30 | 0.02-0.07 | 0.03-0.08 | 0.04-0.09 | 0.06-0.11 | 0.07-0.12 | 0.09-0.14 | 0.10-0.15 | 0.12-0.17 | 0.14-0.19 |
| 2 | 10 | 20 | 30 | 0.02-0.07 | 0.03-0.08 | 0.04-0.09 | 0.06-0.11 | 0.07-0.12 | 0.09-0.14 | 0.10-0.15 | 0.12-0.17 | 0.14-0.19 | |
| 3 | 15 | 25 | 35 | 0.02-0.07 | 0.03-0.08 | 0.04-0.09 | 0.06-0.11 | 0.07-0.12 | 0.09-0.14 | 0.10-0.15 | 0.12-0.17 | 0.14-0.19 | |
| 4 | 20 | 30 | 40 | 0.02-0.04 | 0.03-0.05 | 0.03-0.05 | 0.04-0.08 | 0.05-0.09 | 0.05-0.11 | 0.07-0.12 | 0.08-0.13 | 0.09-0.14 | |
