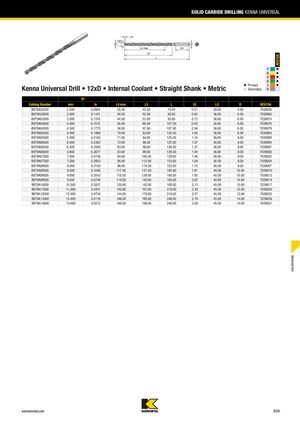

SOLID CARBIDE DRILLING KENNA UNIVERSAL KCU15A P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 Kenna Universal Drill • 12xD • Internal Coolant • Straight Shank • Metric 嘷 Secondary H D1 Catalog Number mm in L4 max L3 L L5 LS D KCU15A B979A02500 2.500 0.0984 35.00 42.00 75.00 0.51 28.00 4.00 7038956 B979A03000 3.000 0.1181 44.00 52.00 93.00 0.62 36.00 6.00 7038960 B979A03500 3.500 0.1378 44.00 53.00 93.00 0.73 36.00 6.00 7038974 B979A04000 4.000 0.1575 56.00 66.00 107.00 0.83 36.00 6.00 7038976 B979A04500 4.500 0.1772 56.00 67.00 107.00 0.94 36.00 6.00 7038979 B979A05000 5.000 0.1969 70.00 83.00 125.00 1.05 36.00 6.00 7038984 B979A05500 5.500 0.2165 71.00 84.00 125.00 1.16 36.00 6.00 7038989 B979A06000 6.000 0.2362 72.00 86.00 125.00 1.27 36.00 6.00 7038994 B979A06500 6.500 0.2559 83.00 98.00 139.00 1.37 36.00 8.00 7038997 B979A06800 6.800 0.2677 83.00 99.00 139.00 1.44 36.00 8.00 7039000 B979A07000 7.000 0.2756 84.00 100.00 139.00 1.48 36.00 8.00 7039002 B979A07500 7.500 0.2953 95.00 112.00 153.00 1.59 36.00 8.00 7039004 B979A08000 8.000 0.3150 96.00 114.00 153.00 1.70 36.00 8.00 7039007 B979A08500 8.500 0.3346 117.00 137.00 185.00 1.81 40.00 10.00 7039010 B979A09000 9.000 0.3543 118.00 139.00 185.00 1.92 40.00 10.00 7039013 B979A09500 9.500 0.3740 119.00 140.00 185.00 2.02 40.00 10.00 7039014 B979A10000 10.000 0.3937 120.00 142.00 185.00 2.13 40.00 10.00 7039017 B979A11000 11.000 0.4331 142.00 167.00 218.00 2.35 45.00 12.00 7039020 B979A12000 12.000 0.4724 144.00 170.00 218.00 2.57 45.00 12.00 7039025 B979A13000 13.000 0.5118 166.00 195.00 246.00 2.79 45.00 14.00 7039029 B979A14000 14.000 0.5512 168.00 198.00 246.00 3.00 45.00 14.00 7039031 HOLEMAKING kennametal.com D24
