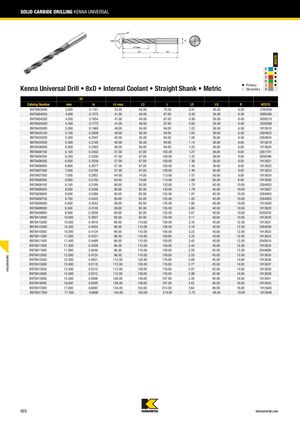

ТВЕРДОСПЛАВНОЕ СВЕРЛЕНИЕ KENNA UNIVERSAL
Сверло Kenna Universal • 8xD • Внутренняя подача СОЖ • Прямой хвостовик • Метрическая система
| Каталожный номер | D1 (мм) | D1 (дюйм) | L4 макс | L3 | L | L5 | LS | D (мм) | KCU15 |
|---|---|---|---|---|---|---|---|---|---|
| B978A03000 | 3.000 | 0.1181 | 33.00 | 40.00 | 78.00 | 0.61 | 36.00 | 6.00 | 3782458 |
| B978A04000 | 4.000 | 0.1575 | 41.00 | 49.00 | 87.00 | 0.82 | 36.00 | 6.00 | 2888306 |
| B978A04200 | 4.200 | 0.1654 | 41.00 | 49.00 | 87.00 | 0.86 | 36.00 | 6.00 | 3858210 |
| B978A04500 | 4.500 | 0.1772 | 41.00 | 49.00 | 87.00 | 0.93 | 36.00 | 6.00 | 3593089 |
| B978A05000 | 5.000 | 0.1969 | 48.00 | 56.00 | 94.00 | 1.03 | 36.00 | 6.00 | 1913618 |
| B978A05100 | 5.100 | 0.2008 | 48.00 | 56.00 | 94.00 | 1.05 | 36.00 | 6.00 | 2264933 |
| B978A05200 | 5.200 | 0.2047 | 48.00 | 56.00 | 94.00 | 1.08 | 36.00 | 6.00 | 2264934 |
| B978A05500 | 5.500 | 0.2165 | 48.00 | 56.00 | 94.00 | 1.14 | 36.00 | 6.00 | 1913619 |
| B978A06000 | 6.000 | 0.2362 | 48.00 | 56.00 | 94.00 | 1.25 | 36.00 | 6.00 | 1913620 |
| B978A06100 | 6.100 | 0.2402 | 57.00 | 67.00 | 105.00 | 1.27 | 36.00 | 8.00 | 2261701 |
| B978A06350 | 6.350 | 0.2500 | 57.00 | 67.00 | 105.00 | 1.32 | 36.00 | 8.00 | 2658396 |
| B978A06500 | 6.500 | 0.2559 | 57.00 | 67.00 | 105.00 | 1.36 | 36.00 | 8.00 | 1913621 |
| B978A06800 | 6.800 | 0.2677 | 57.00 | 67.00 | 105.00 | 1.42 | 36.00 | 8.00 | 1913622 |
| B978A07000 | 7.000 | 0.2756 | 57.00 | 67.00 | 105.00 | 1.46 | 36.00 | 8.00 | 1913623 |
| B978A07500 | 7.500 | 0.2953 | 64.00 | 74.00 | 113.00 | 1.57 | 36.00 | 8.00 | 1913624 |
| B978A08000 | 8.000 | 0.3150 | 64.00 | 74.00 | 113.00 | 1.68 | 36.00 | 8.00 | 1913626 |
| B978A08100 | 8.100 | 0.3189 | 80.00 | 92.00 | 135.00 | 1.70 | 40.00 | 10.00 | 2264953 |
| B978A08500 | 8.500 | 0.3346 | 80.00 | 92.00 | 135.00 | 1.79 | 40.00 | 10.00 | 1913627 |
| B978A08600 | 8.600 | 0.3386 | 80.00 | 92.00 | 135.00 | 1.81 | 40.00 | 10.00 | 2264954 |
| B978A08700 | 8.700 | 0.3425 | 80.00 | 92.00 | 135.00 | 1.83 | 40.00 | 10.00 | 2264955 |
| B978A09000 | 9.000 | 0.3543 | 80.00 | 92.00 | 135.00 | 1.90 | 40.00 | 10.00 | 1913628 |
| B978A09500 | 9.500 | 0.3740 | 80.00 | 92.00 | 135.00 | 2.00 | 40.00 | 10.00 | 1913629 |
| B978A09800 | 9.800 | 0.3858 | 80.00 | 92.00 | 135.00 | 2.07 | 40.00 | 10.00 | 2050230 |
| B978A10000 | 10.000 | 0.3937 | 80.00 | 92.00 | 135.00 | 2.11 | 40.00 | 10.00 | 1913630 |
| B978A10200 | 10.200 | 0.4016 | 96.00 | 110.00 | 158.00 | 2.16 | 45.00 | 12.00 | 1913631 |
| B978A10300 | 10.300 | 0.4055 | 96.00 | 110.00 | 158.00 | 2.18 | 45.00 | 12.00 | 2264939 |
| B978A10500 | 10.500 | 0.4134 | 96.00 | 110.00 | 158.00 | 2.22 | 45.00 | 12.00 | 1913632 |
| B978A11000 | 11.000 | 0.4331 | 96.00 | 110.00 | 158.00 | 2.33 | 45.00 | 12.00 | 1913633 |
| B978A11400 | 11.400 | 0.4488 | 96.00 | 110.00 | 158.00 | 2.42 | 45.00 | 12.00 | 2045616 |
| B978A11500 | 11.500 | 0.4528 | 96.00 | 110.00 | 158.00 | 2.44 | 45.00 | 12.00 | 1913634 |
| B978A11800 | 11.800 | 0.4646 | 96.00 | 110.00 | 158.00 | 2.50 | 45.00 | 12.00 | 2044606 |
| B978A12000 | 12.000 | 0.4724 | 96.00 | 110.00 | 158.00 | 2.55 | 45.00 | 12.00 | 1913635 |
| B978A12500 | 12.500 | 0.4921 | 112.00 | 128.00 | 176.00 | 2.66 | 45.00 | 14.00 | 1913636 |
| B978A13000 | 13.000 | 0.5118 | 112.00 | 128.00 | 176.00 | 2.77 | 45.00 | 14.00 | 1913637 |
| B978A13500 | 13.500 | 0.5315 | 112.00 | 128.00 | 176.00 | 2.87 | 45.00 | 14.00 | 1913638 |
| B978A14000 | 14.000 | 0.5512 | 112.00 | 128.00 | 176.00 | 2.98 | 45.00 | 14.00 | 1913639 |
| B978A15000 | 15.000 | 0.5906 | 128.00 | 146.00 | 197.00 | 3.20 | 48.00 | 16.00 | 1913641 |
| B978A16000 | 16.000 | 0.6299 | 128.00 | 146.00 | 197.00 | 3.42 | 48.00 | 16.00 | 1913643 |
| B978A17000 | 17.000 | 0.6693 | 144.00 | 163.00 | 214.00 | 3.64 | 48.00 | 18.00 | 1913645 |
| B978A17500 | 17.500 | 0.6890 | 144.00 | 163.00 | 214.00 | 3.75 | 48.00 | 18.00 | 1913646 |
