Сверление цельнокарбидным буром Kenna Universal

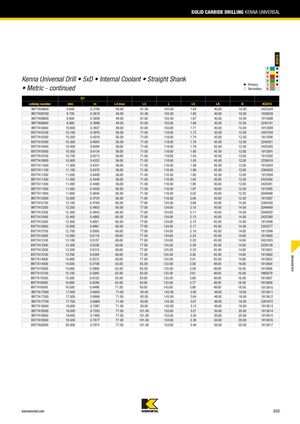

Бур Kenna Universal • 5xD • Внутренняя подача СОЖ • Прямой хвостовик • Метрическая система (продолжение)
| Номер каталога | D1, мм | D1, дюйм | L4 макс | L3 | L | L5 | LS | D | KCU15 |
|---|---|---|---|---|---|---|---|---|---|
| B977A09600 | 9.600 | 0.3780 | 49.00 | 61.00 | 103.00 | 1.64 | 40.00 | 10.00 | 2425344 |
| B977A09700 | 9.700 | 0.3819 | 49.00 | 61.00 | 103.00 | 1.65 | 40.00 | 10.00 | 1939528 |
| B977A09800 | 9.800 | 0.3858 | 49.00 | 61.00 | 103.00 | 1.67 | 40.00 | 10.00 | 1913588 |
| B977A09900 | 9.900 | 0.3898 | 49.00 | 61.00 | 103.00 | 1.69 | 40.00 | 10.00 | 2245191 |
| B977A10000 | 10.000 | 0.3937 | 49.00 | 61.00 | 103.00 | 1.71 | 40.00 | 10.00 | 1913589 |
| B977A10100 | 10.100 | 0.3976 | 56.00 | 71.00 | 118.00 | 1.72 | 45.00 | 12.00 | 2407294 |
| B977A10200 | 10.200 | 0.4016 | 56.00 | 71.00 | 118.00 | 1.74 | 45.00 | 12.00 | 1913590 |
| B977A10300 | 10.300 | 0.4055 | 56.00 | 71.00 | 118.00 | 1.76 | 45.00 | 12.00 | 2240351 |
| B977A10400 | 10.400 | 0.4094 | 56.00 | 71.00 | 118.00 | 1.78 | 45.00 | 12.00 | 2425455 |
| B977A10500 | 10.500 | 0.4134 | 56.00 | 71.00 | 118.00 | 1.80 | 45.00 | 12.00 | 1913591 |
| B977A10700 | 10.700 | 0.4213 | 56.00 | 71.00 | 118.00 | 1.83 | 45.00 | 12.00 | 1913592 |
| B977A10800 | 10.800 | 0.4252 | 56.00 | 71.00 | 118.00 | 1.85 | 45.00 | 12.00 | 2256918 |
| B977A11000 | 11.000 | 0.4331 | 56.00 | 71.00 | 118.00 | 1.88 | 45.00 | 12.00 | 1913593 |
| B977A11100 | 11.100 | 0.4370 | 56.00 | 71.00 | 118.00 | 1.90 | 45.00 | 12.00 | 2264020 |
| B977A11200 | 11.200 | 0.4409 | 56.00 | 71.00 | 118.00 | 1.92 | 45.00 | 12.00 | 1913594 |
| B977A11300 | 11.300 | 0.4449 | 56.00 | 71.00 | 118.00 | 1.94 | 45.00 | 12.00 | 2425456 |
| B977A11400 | 11.400 | 0.4488 | 56.00 | 71.00 | 118.00 | 1.95 | 45.00 | 12.00 | 2425381 |
| B977A11500 | 11.500 | 0.4528 | 56.00 | 71.00 | 118.00 | 1.97 | 45.00 | 12.00 | 1913595 |
| B977A11800 | 11.800 | 0.4646 | 56.00 | 71.00 | 118.00 | 2.02 | 45.00 | 12.00 | 2049488 |
| B977A12000 | 12.000 | 0.4724 | 56.00 | 71.00 | 118.00 | 2.06 | 45.00 | 12.00 | 1913597 |
| B977A12100 | 12.100 | 0.4764 | 60.00 | 77.00 | 124.00 | 2.08 | 45.00 | 14.00 | 2384430 |
| B977A12200 | 12.200 | 0.4803 | 60.00 | 77.00 | 124.00 | 2.10 | 45.00 | 14.00 | 2049489 |
| B977A12300 | 12.300 | 0.4843 | 60.00 | 77.00 | 124.00 | 2.11 | 45.00 | 14.00 | 2045820 |
| B977A12400 | 12.400 | 0.4882 | 60.00 | 77.00 | 124.00 | 2.13 | 45.00 | 14.00 | 2425380 |
| B977A12500 | 12.500 | 0.4921 | 60.00 | 77.00 | 124.00 | 2.15 | 45.00 | 14.00 | 1913598 |
| B977A12600 | 12.600 | 0.4961 | 60.00 | 77.00 | 124.00 | 2.17 | 45.00 | 14.00 | 2203577 |
| B977A12700 | 12.700 | 0.5000 | 60.00 | 77.00 | 124.00 | 2.18 | 45.00 | 14.00 | 1913599 |
| B977A13000 | 13.000 | 0.5118 | 60.00 | 77.00 | 124.00 | 2.24 | 45.00 | 14.00 | 1913600 |
| B977A13100 | 13.100 | 0.5157 | 60.00 | 77.00 | 124.00 | 2.25 | 45.00 | 14.00 | 2401853 |
| B977A13300 | 13.300 | 0.5236 | 60.00 | 77.00 | 124.00 | 2.29 | 45.00 | 14.00 | 2229138 |
| B977A13500 | 13.500 | 0.5315 | 60.00 | 77.00 | 124.00 | 2.33 | 45.00 | 14.00 | 1913601 |
| B977A13700 | 13.700 | 0.5394 | 60.00 | 77.00 | 124.00 | 2.36 | 45.00 | 14.00 | 1913602 |
| B977A14000 | 14.000 | 0.5512 | 60.00 | 77.00 | 124.00 | 2.41 | 45.00 | 14.00 | 1913603 |
| B977A14500 | 14.500 | 0.5709 | 63.00 | 83.00 | 133.00 | 2.50 | 48.00 | 16.00 | 1913604 |
| B977A15000 | 15.000 | 0.5906 | 63.00 | 83.00 | 133.00 | 2.59 | 48.00 | 16.00 | 1913606 |
| B977A15100 | 15.100 | 0.5945 | 63.00 | 83.00 | 133.00 | 2.61 | 48.00 | 16.00 | 1960079 |
| B977A15500 | 15.500 | 0.6102 | 63.00 | 83.00 | 133.00 | 2.68 | 48.00 | 16.00 | 1913607 |
| B977A16000 | 16.000 | 0.6299 | 63.00 | 83.00 | 133.00 | 2.77 | 48.00 | 16.00 | 1913609 |
| B977A16500 | 16.500 | 0.6496 | 71.00 | 93.00 | 143.00 | 2.86 | 48.00 | 18.00 | 1913610 |
| B977A17000 | 17.000 | 0.6693 | 71.00 | 93.00 | 143.00 | 2.95 | 48.00 | 18.00 | 1913611 |
| B977A17500 | 17.500 | 0.6890 | 71.00 | 93.00 | 143.00 | 3.04 | 48.00 | 18.00 | 1913612 |
| B977A17700 | 17.700 | 0.6969 | 71.00 | 93.00 | 143.00 | 3.07 | 48.00 | 18.00 | 2391872 |
| B977A18000 | 18.000 | 0.7087 | 71.00 | 93.00 | 143.00 | 3.12 | 48.00 | 18.00 | 1913613 |
| B977A18500 | 18.500 | 0.7283 | 77.00 | 101.00 | 153.00 | 3.21 | 50.00 | 20.00 | 1913614 |
| B977A19000 | 19.000 | 0.7480 | 77.00 | 101.00 | 153.00 | 3.30 | 50.00 | 20.00 | 1913615 |
| B977A19500 | 19.500 | 0.7677 | 77.00 | 101.00 | 153.00 | 3.39 | 50.00 | 20.00 | 1913616 |
| B977A20000 | 20.000 | 0.7874 | 77.00 | 101.00 | 153.00 | 3.48 | 50.00 | 20.00 | 1913617 |
Материалы: Основные: P, M, K, N, S; Вторичные: H
