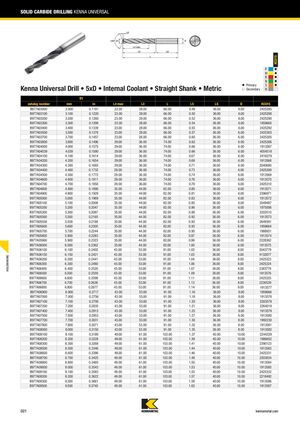

ТВЕРДОСПЛАВНОЕ СВЕРЛЕНИЕ KENNA UNIVERSAL
Сверло Kenna Universal • 5xD • Внутренняя подача СОЖ • Прямой хвостовик • Метрическая система
Марки: P — первичная, M, K, N, S — вторичные, H
| Каталожный номер | D1 (мм) | D1 (дюйм) | L4 макс | L3 | L | L5 | LS | D (мм) | KCU15 |
|---|---|---|---|---|---|---|---|---|---|
| B977A03000 | 3.000 | 0.1181 | 23.00 | 28.00 | 66.00 | 0.48 | 36.00 | 6.00 | 2425285 |
| B977A03100 | 3.100 | 0.1220 | 23.00 | 28.00 | 66.00 | 0.50 | 36.00 | 6.00 | 2425288 |
| B977A03200 | 3.200 | 0.1260 | 23.00 | 28.00 | 66.00 | 0.52 | 36.00 | 6.00 | 2425290 |
| B977A03300 | 3.300 | 0.1299 | 23.00 | 28.00 | 66.00 | 0.54 | 36.00 | 6.00 | 1959665 |
| B977A03400 | 3.400 | 0.1339 | 23.00 | 28.00 | 66.00 | 0.55 | 36.00 | 6.00 | 2425292 |
| B977A03500 | 3.500 | 0.1378 | 23.00 | 28.00 | 66.00 | 0.57 | 36.00 | 6.00 | 2425303 |
| B977A03700 | 3.700 | 0.1457 | 23.00 | 28.00 | 66.00 | 0.60 | 36.00 | 6.00 | 2425305 |
| B977A03800 | 3.800 | 0.1496 | 29.00 | 36.00 | 74.00 | 0.62 | 36.00 | 6.00 | 2425306 |
| B977A04000 | 4.000 | 0.1575 | 29.00 | 36.00 | 74.00 | 0.66 | 36.00 | 6.00 | 1913567 |
| B977A04039 | 4.039 | 0.1590 | 29.00 | 36.00 | 74.00 | 0.66 | 36.00 | 6.00 | 4054518 |
| B977A04100 | 4.100 | 0.1614 | 29.00 | 36.00 | 74.00 | 0.67 | 36.00 | 6.00 | 2416279 |
| B977A04200 | 4.200 | 0.1654 | 29.00 | 36.00 | 74.00 | 0.69 | 36.00 | 6.00 | 1913568 |
| B977A04300 | 4.300 | 0.1693 | 29.00 | 36.00 | 74.00 | 0.71 | 36.00 | 6.00 | 2040680 |
| B977A04400 | 4.400 | 0.1732 | 29.00 | 36.00 | 74.00 | 0.73 | 36.00 | 6.00 | 2425309 |
| B977A04500 | 4.500 | 0.1772 | 29.00 | 36.00 | 74.00 | 0.74 | 36.00 | 6.00 | 1913569 |
| B977A04600 | 4.600 | 0.1811 | 29.00 | 36.00 | 74.00 | 0.76 | 36.00 | 6.00 | 1913570 |
| B977A04700 | 4.700 | 0.1850 | 29.00 | 36.00 | 74.00 | 0.78 | 36.00 | 6.00 | 2425310 |
| B977A04800 | 4.800 | 0.1890 | 35.00 | 44.00 | 82.00 | 0.80 | 36.00 | 6.00 | 1913571 |
| B977A04900 | 4.900 | 0.1929 | 35.00 | 44.00 | 82.00 | 0.81 | 36.00 | 6.00 | 2396971 |
| B977A05000 | 5.000 | 0.1969 | 35.00 | 44.00 | 82.00 | 0.83 | 36.00 | 6.00 | 1913572 |
| B977A05100 | 5.100 | 0.2008 | 35.00 | 44.00 | 82.00 | 0.85 | 36.00 | 6.00 | 2049487 |
| B977A05200 | 5.200 | 0.2047 | 35.00 | 44.00 | 82.00 | 0.86 | 36.00 | 6.00 | 1975006 |
| B977A05300 | 5.300 | 0.2087 | 35.00 | 44.00 | 82.00 | 0.88 | 36.00 | 6.00 | 2202510 |
| B977A05500 | 5.500 | 0.2165 | 35.00 | 44.00 | 82.00 | 0.92 | 36.00 | 6.00 | 1913573 |
| B977A05558 | 5.558 | 0.2188 | 35.00 | 44.00 | 82.00 | 0.93 | 36.00 | 6.00 | 2649391 |
| B977A05600 | 5.600 | 0.2205 | 35.00 | 44.00 | 82.00 | 0.93 | 36.00 | 6.00 | 1959664 |
| B977A05700 | 5.700 | 0.2244 | 35.00 | 44.00 | 82.00 | 0.95 | 36.00 | 6.00 | 1988931 |
| B977A05800 | 5.800 | 0.2283 | 35.00 | 44.00 | 82.00 | 0.97 | 36.00 | 6.00 | 1913574 |
| B977A05900 | 5.900 | 0.2323 | 35.00 | 44.00 | 82.00 | 0.99 | 36.00 | 6.00 | 2228362 |
| B977A06000 | 6.000 | 0.2362 | 35.00 | 44.00 | 82.00 | 1.00 | 36.00 | 6.00 | 1913575 |
| B977A06100 | 6.100 | 0.2402 | 43.00 | 53.00 | 91.00 | 1.02 | 36.00 | 8.00 | 2043779 |
| B977A06150 | 6.150 | 0.2421 | 43.00 | 53.00 | 91.00 | 1.03 | 36.00 | 8.00 | 4132877 |
| B977A06200 | 6.200 | 0.2441 | 43.00 | 53.00 | 91.00 | 1.04 | 36.00 | 8.00 | 2425323 |
| B977A06300 | 6.300 | 0.2480 | 43.00 | 53.00 | 91.00 | 1.06 | 36.00 | 8.00 | 2425324 |
| B977A06400 | 6.400 | 0.2520 | 43.00 | 53.00 | 91.00 | 1.07 | 36.00 | 8.00 | 2383778 |
| B977A06500 | 6.500 | 0.2559 | 43.00 | 53.00 | 91.00 | 1.09 | 36.00 | 8.00 | 1913576 |
| B977A06600 | 6.600 | 0.2598 | 43.00 | 53.00 | 91.00 | 1.11 | 36.00 | 8.00 | 2425325 |
| B977A06700 | 6.700 | 0.2638 | 43.00 | 53.00 | 91.00 | 1.13 | 36.00 | 8.00 | 2230539 |
| B977A06800 | 6.800 | 0.2677 | 43.00 | 53.00 | 91.00 | 1.14 | 36.00 | 8.00 | 1913577 |
| B977A06900 | 6.900 | 0.2717 | 43.00 | 53.00 | 91.00 | 1.16 | 36.00 | 8.00 | 1959666 |
| B977A07000 | 7.000 | 0.2756 | 43.00 | 53.00 | 91.00 | 1.18 | 36.00 | 8.00 | 1913578 |
| B977A07100 | 7.100 | 0.2795 | 43.00 | 53.00 | 91.00 | 1.20 | 36.00 | 8.00 | 2203579 |
| B977A07200 | 7.200 | 0.2835 | 43.00 | 53.00 | 91.00 | 1.21 | 36.00 | 8.00 | 2264019 |
| B977A07400 | 7.400 | 0.2913 | 43.00 | 53.00 | 91.00 | 1.25 | 36.00 | 8.00 | 1913579 |
| B977A07500 | 7.500 | 0.2953 | 43.00 | 53.00 | 91.00 | 1.27 | 36.00 | 8.00 | 1913580 |
| B977A07700 | 7.700 | 0.3031 | 43.00 | 53.00 | 91.00 | 1.30 | 36.00 | 8.00 | 1992230 |
| B977A07800 | 7.800 | 0.3071 | 43.00 | 53.00 | 91.00 | 1.32 | 36.00 | 8.00 | 1913581 |
| B977A08000 | 8.000 | 0.3150 | 43.00 | 53.00 | 91.00 | 1.35 | 36.00 | 8.00 | 1913582 |
| B977A08100 | 8.100 | 0.3189 | 49.00 | 61.00 | 103.00 | 1.37 | 40.00 | 10.00 | 2244229 |
| B977A08200 | 8.200 | 0.3228 | 49.00 | 61.00 | 103.00 | 1.39 | 40.00 | 10.00 | 1986652 |
| B977A08300 | 8.300 | 0.3268 | 49.00 | 61.00 | 103.00 | 1.41 | 40.00 | 10.00 | 2390123 |
| B977A08500 | 8.500 | 0.3346 | 49.00 | 61.00 | 103.00 | 1.44 | 40.00 | 10.00 | 1913583 |
| B977A08600 | 8.600 | 0.3386 | 49.00 | 61.00 | 103.00 | 1.46 | 40.00 | 10.00 | 2425331 |
| B977A08700 | 8.700 | 0.3425 | 49.00 | 61.00 | 103.00 | 1.48 | 40.00 | 10.00 | 2203834 |
| B977A08800 | 8.800 | 0.3465 | 49.00 | 61.00 | 103.00 | 1.50 | 40.00 | 10.00 | 1913584 |
| B977A09000 | 9.000 | 0.3543 | 49.00 | 61.00 | 103.00 | 1.53 | 40.00 | 10.00 | 1913585 |
| B977A09100 | 9.100 | 0.3583 | 49.00 | 61.00 | 103.00 | 1.55 | 40.00 | 10.00 | 2425332 |
| B977A09200 | 9.200 | 0.3622 | 49.00 | 61.00 | 103.00 | 1.57 | 40.00 | 10.00 | 2218492 |
| B977A09300 | 9.300 | 0.3661 | 49.00 | 61.00 | 103.00 | 1.58 | 40.00 | 10.00 | 1913586 |
| B977A09500 | 9.500 | 0.3740 | 49.00 | 61.00 | 103.00 | 1.62 | 40.00 | 10.00 | 1913587 |
