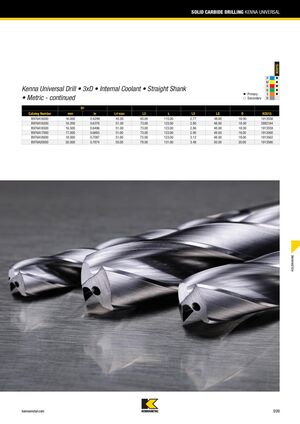

ТВЕРДОСПЛАВНЫЕ СВЕРЛА KENNA UNIVERSAL
Сверло Kenna Universal • 3xD • Внутренняя подача СОЖ • Прямая державка • Метрическая система - продолжение
| Каталожный номер | D1, мм | D1, дюйм | L4 макс | L3 | L | L5 | LS | D | KCU15 |
|---|---|---|---|---|---|---|---|---|---|
| B976A16000 | 16.000 | 0.6299 | 45.00 | 65.00 | 115.00 | 2.77 | 48.00 | 16.00 | 1913558 |
| B976A16200 | 16.200 | 0.6378 | 51.00 | 73.00 | 123.00 | 2.80 | 48.00 | 18.00 | 2882164 |
| B976A16500 | 16.500 | 0.6496 | 51.00 | 73.00 | 123.00 | 2.86 | 48.00 | 18.00 | 1913559 |
| B976A17000 | 17.000 | 0.6693 | 51.00 | 73.00 | 123.00 | 2.95 | 48.00 | 18.00 | 1913560 |
| B976A18000 | 18.000 | 0.7087 | 51.00 | 73.00 | 123.00 | 3.12 | 48.00 | 18.00 | 1913562 |
| B976A20000 | 20.000 | 0.7874 | 55.00 | 79.00 | 131.00 | 3.48 | 50.00 | 20.00 | 1913566 |
