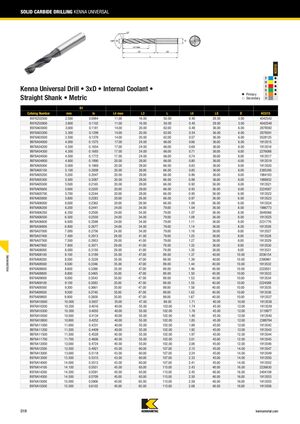

ТВЕРДОСПЛАВНЫЕ СВЕРЛА KENNA UNIVERSAL
Сверло Kenna Universal • 3xD • Внутренняя подача СОЖ • Прямая державка • Метрическая система
| Каталожный номер | D1, мм | D1, дюйм | L4 макс | L3 | L | L5 | LS | D | KCU15 |
|---|---|---|---|---|---|---|---|---|---|
| B976Z02500 | 2.500 | 0.0984 | 11.00 | 16.00 | 50.00 | 0.40 | 28.00 | 3.00 | 4042542 |
| B976Z02800 | 2.800 | 0.1102 | 11.00 | 16.00 | 50.00 | 0.45 | 28.00 | 3.00 | 4042548 |
| B976A03000 | 3.000 | 0.1181 | 14.00 | 20.00 | 62.00 | 0.48 | 36.00 | 6.00 | 2878592 |
| B976A03300 | 3.300 | 0.1299 | 14.00 | 20.00 | 62.00 | 0.54 | 36.00 | 6.00 | 2878591 |
| B976A03500 | 3.500 | 0.1378 | 14.00 | 20.00 | 62.00 | 0.57 | 36.00 | 6.00 | 3528125 |
| B976A04000 | 4.000 | 0.1575 | 17.00 | 24.00 | 66.00 | 0.66 | 36.00 | 6.00 | 1913515 |
| B976A04200 | 4.200 | 0.1654 | 17.00 | 24.00 | 66.00 | 0.69 | 36.00 | 6.00 | 1913516 |
| B976A04300 | 4.300 | 0.1693 | 17.00 | 24.00 | 66.00 | 0.71 | 36.00 | 6.00 | 2276088 |
| B976A04500 | 4.500 | 0.1772 | 17.00 | 24.00 | 66.00 | 0.74 | 36.00 | 6.00 | 1913517 |
| B976A04800 | 4.800 | 0.1890 | 20.00 | 28.00 | 66.00 | 0.80 | 36.00 | 6.00 | 1913519 |
| B976A05000 | 5.000 | 0.1969 | 20.00 | 28.00 | 66.00 | 0.83 | 36.00 | 6.00 | 1913520 |
| B976A05100 | 5.100 | 0.2008 | 20.00 | 28.00 | 66.00 | 0.85 | 36.00 | 6.00 | 2385356 |
| B976A05200 | 5.200 | 0.2047 | 20.00 | 28.00 | 66.00 | 0.86 | 36.00 | 6.00 | 1984183 |
| B976A05300 | 5.300 | 0.2087 | 20.00 | 28.00 | 66.00 | 0.88 | 36.00 | 6.00 | 1988932 |
| B976A05500 | 5.500 | 0.2165 | 20.00 | 28.00 | 66.00 | 0.92 | 36.00 | 6.00 | 1913521 |
| B976A05600 | 5.600 | 0.2205 | 20.00 | 28.00 | 66.00 | 0.93 | 36.00 | 6.00 | 2224587 |
| B976A05700 | 5.700 | 0.2244 | 20.00 | 28.00 | 66.00 | 0.95 | 36.00 | 6.00 | 1913522 |
| B976A05800 | 5.800 | 0.2283 | 20.00 | 28.00 | 66.00 | 0.97 | 36.00 | 6.00 | 1913523 |
| B976A06000 | 6.000 | 0.2362 | 20.00 | 28.00 | 66.00 | 1.00 | 36.00 | 6.00 | 1913524 |
| B976A06200 | 6.200 | 0.2441 | 24.00 | 34.00 | 79.00 | 1.04 | 36.00 | 8.00 | 1986773 |
| B976A06350 | 6.350 | 0.2500 | 24.00 | 34.00 | 79.00 | 1.07 | 36.00 | 8.00 | 2649366 |
| B976A06500 | 6.500 | 0.2559 | 24.00 | 34.00 | 79.00 | 1.09 | 36.00 | 8.00 | 1913525 |
| B976A06600 | 6.600 | 0.2598 | 24.00 | 34.00 | 79.00 | 1.11 | 36.00 | 8.00 | 2231776 |
| B976A06800 | 6.800 | 0.2677 | 24.00 | 34.00 | 79.00 | 1.14 | 36.00 | 8.00 | 1913526 |
| B976A07000 | 7.000 | 0.2756 | 24.00 | 34.00 | 79.00 | 1.18 | 36.00 | 8.00 | 1913527 |
| B976A07400 | 7.400 | 0.2913 | 29.00 | 41.00 | 79.00 | 1.25 | 36.00 | 8.00 | 1913528 |
| B976A07500 | 7.500 | 0.2953 | 29.00 | 41.00 | 79.00 | 1.27 | 36.00 | 8.00 | 1913529 |
| B976A07800 | 7.800 | 0.3071 | 29.00 | 41.00 | 79.00 | 1.32 | 36.00 | 8.00 | 1913530 |
| B976A08000 | 8.000 | 0.3150 | 29.00 | 41.00 | 79.00 | 1.35 | 36.00 | 8.00 | 1913531 |
| B976A08100 | 8.100 | 0.3189 | 35.00 | 47.00 | 89.00 | 1.37 | 40.00 | 10.00 | 2036154 |
| B976A08200 | 8.200 | 0.3228 | 35.00 | 47.00 | 89.00 | 1.39 | 40.00 | 10.00 | 2390961 |
| B976A08500 | 8.500 | 0.3346 | 35.00 | 47.00 | 89.00 | 1.44 | 40.00 | 10.00 | 1913532 |
| B976A08600 | 8.600 | 0.3386 | 35.00 | 47.00 | 89.00 | 1.46 | 40.00 | 10.00 | 2222651 |
| B976A08800 | 8.800 | 0.3465 | 35.00 | 47.00 | 89.00 | 1.50 | 40.00 | 10.00 | 1913533 |
| B976A09000 | 9.000 | 0.3543 | 35.00 | 47.00 | 89.00 | 1.53 | 40.00 | 10.00 | 1913534 |
| B976A09100 | 9.100 | 0.3583 | 35.00 | 47.00 | 89.00 | 1.55 | 40.00 | 10.00 | 2224588 |
| B976A09300 | 9.300 | 0.3661 | 35.00 | 47.00 | 89.00 | 1.58 | 40.00 | 10.00 | 1913535 |
| B976A09500 | 9.500 | 0.3740 | 35.00 | 47.00 | 89.00 | 1.62 | 40.00 | 10.00 | 1913536 |
| B976A09800 | 9.800 | 0.3858 | 35.00 | 47.00 | 89.00 | 1.67 | 40.00 | 10.00 | 1913537 |
| B976A10000 | 10.000 | 0.3937 | 35.00 | 47.00 | 89.00 | 1.71 | 40.00 | 10.00 | 1913538 |
| B976A10200 | 10.200 | 0.4016 | 40.00 | 55.00 | 102.00 | 1.74 | 45.00 | 12.00 | 1913539 |
| B976A10300 | 10.300 | 0.4055 | 40.00 | 55.00 | 102.00 | 1.76 | 45.00 | 12.00 | 3119977 |
| B976A10500 | 10.500 | 0.4134 | 40.00 | 55.00 | 102.00 | 1.80 | 45.00 | 12.00 | 1913540 |
| B976A10800 | 10.800 | 0.4252 | 40.00 | 55.00 | 102.00 | 1.85 | 45.00 | 12.00 | 2388784 |
| B976A11000 | 11.000 | 0.4331 | 40.00 | 55.00 | 102.00 | 1.88 | 45.00 | 12.00 | 1913542 |
| B976A11200 | 11.200 | 0.4409 | 40.00 | 55.00 | 102.00 | 1.92 | 45.00 | 12.00 | 1913543 |
| B976A11500 | 11.500 | 0.4528 | 40.00 | 55.00 | 102.00 | 1.97 | 45.00 | 12.00 | 1913544 |
| B976A11700 | 11.700 | 0.4606 | 40.00 | 55.00 | 102.00 | 2.01 | 45.00 | 12.00 | 1913545 |
| B976A12000 | 12.000 | 0.4724 | 40.00 | 55.00 | 102.00 | 2.06 | 45.00 | 12.00 | 1913546 |
| B976A12500 | 12.500 | 0.4921 | 43.00 | 60.00 | 107.00 | 2.15 | 45.00 | 14.00 | 1913547 |
| B976A13000 | 13.000 | 0.5118 | 43.00 | 60.00 | 107.00 | 2.24 | 45.00 | 14.00 | 1913549 |
| B976A13500 | 13.500 | 0.5315 | 43.00 | 60.00 | 107.00 | 2.33 | 45.00 | 14.00 | 1913550 |
| B976A14000 | 14.000 | 0.5512 | 43.00 | 60.00 | 107.00 | 2.41 | 45.00 | 14.00 | 1913552 |
| B976A14100 | 14.100 | 0.5551 | 45.00 | 65.00 | 115.00 | 2.43 | 48.00 | 16.00 | 2226630 |
| B976A14200 | 14.200 | 0.5591 | 45.00 | 65.00 | 115.00 | 2.45 | 48.00 | 16.00 | 2404108 |
| B976A14500 | 14.500 | 0.5709 | 45.00 | 65.00 | 115.00 | 2.50 | 48.00 | 16.00 | 1913553 |
| B976A15000 | 15.000 | 0.5906 | 45.00 | 65.00 | 115.00 | 2.59 | 48.00 | 16.00 | 1913555 |
| B976A15500 | 15.500 | 0.6102 | 45.00 | 65.00 | 115.00 | 2.68 | 48.00 | 16.00 | 1913556 |
