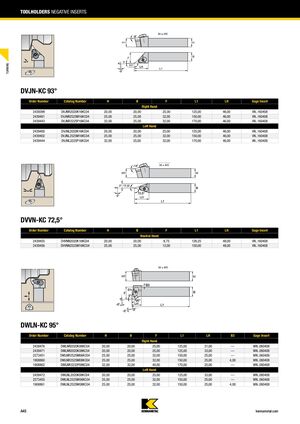

Державки резцов с отрицательными пластинами
DVJN-KC 93°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 2439399 | DVJNR2020K16KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 46,00 | VN..160408 |
| 2439401 | DVJNR2525M16KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 46,00 | VN..160408 |
| 2439443 | DVJNR3225P16KC04 | 32,00 | 25,00 | 32,00 | 170,00 | 46,00 | VN..160408 |
| Левая рука | |||||||
| 2439400 | DVJNL2020K16KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 46,00 | VN..160408 |
| 2439402 | DVJNL2525M16KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 46,00 | VN..160408 |
| 2439444 | DVJNL3225P16KC04 | 32,00 | 25,00 | 32,00 | 170,00 | 46,00 | VN..160408 |
DVVN-KC 72,5°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Нейтральная рука | |||||||
| 2439455 | DVVNN2020K16KC04 | 20,00 | 20,00 | 9,75 | 126,25 | 48,00 | VN..160408 |
| 2439456 | DVVNN2525M16KC04 | 25,00 | 25,00 | 12,00 | 150,00 | 48,00 | VN..160408 |
DWLN-KC 95°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | B3 | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 2439476 | DWLNR2020K06KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 31,00 | — | WN..060408 |
| 2439471 | DWLNR2020K08KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 33,00 | — | WN..080408 |
| 2273451 | DWLNR2525M06KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 25,00 | — | WN..060408 |
| 1908860 | DWLNR2525M08KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 25,00 | 4,00 | WN..080408 |
| 1908862 | DWLNR3232P08KC04 | 32,00 | 32,00 | 40,00 | 170,00 | 25,00 | — | WN..080408 |
| Левая рука | ||||||||
| 2439472 | DWLNL2020K08KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 33,00 | — | WN..080408 |
| 2273455 | DWLNL2525M06KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 25,00 | — | WN..060408 |
| 1908861 | DWLNL2525M08KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 25,00 | 4,00 | WN..080408 |
