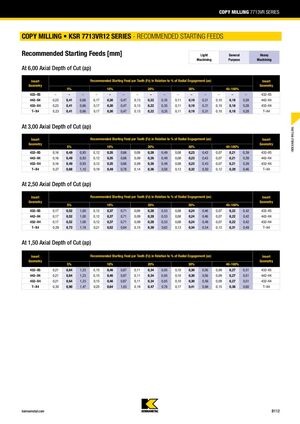

COPY MILLING 7713VR SERIES COPY MILLING • KSR 7713VR12 SERIES - RECOMMENDED STARTING FEEDS Recommended Starting Feeds [mm] Light General Heavy Machining Purpose Machining At 6,00 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 5% 10% 20% 30% 40–100% 432–X5 – – – – – – – – – – – – – – – 432–X5 442–X4 0,23 0,41 0,66 0,17 0,30 0,47 0,13 0,22 0,35 0,11 0,19 0,31 0,10 0,18 0,28 442–X4 432–X4 0,23 0,41 0,66 0,17 0,30 0,47 0,13 0,22 0,35 0,11 0,19 0,31 0,10 0,18 0,28 432–X4 T–X4 0,23 0,41 0,66 0,17 0,30 0,47 0,13 0,22 0,35 0,11 0,19 0,31 0,10 0,18 0,28 T–X4 At 3,00 Axial Depth of Cut (ap) INDEXABLE MILLING Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 5% 10% 20% 30% 40–100% 432–X5 0,16 0,49 0,93 0,12 0,35 0,66 0,09 0,26 0,49 0,08 0,23 0,43 0,07 0,21 0,39 432–X5 442–X4 0,16 0,49 0,93 0,12 0,35 0,66 0,09 0,26 0,49 0,08 0,23 0,43 0,07 0,21 0,39 442–X4 432–X4 0,16 0,49 0,93 0,12 0,35 0,66 0,09 0,26 0,49 0,08 0,23 0,43 0,07 0,21 0,39 432–X4 T–X4 0,27 0,68 1,10 0,19 0,49 0,78 0,14 0,36 0,58 0,13 0,32 0,50 0,12 0,29 0,46 T–X4 At 2,50 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 5% 10% 20% 30% 40–100% 432–X5 0,17 0,52 1,00 0,12 0,37 0,71 0,09 0,28 0,53 0,08 0,24 0,46 0,07 0,22 0,42 432–X5 442–X4 0,17 0,52 1,00 0,12 0,37 0,71 0,09 0,28 0,53 0,08 0,24 0,46 0,07 0,22 0,42 442–X4 432–X4 0,17 0,52 1,00 0,12 0,37 0,71 0,09 0,28 0,53 0,08 0,24 0,46 0,07 0,22 0,42 432–X4 T–X4 0,29 0,73 1,18 0,21 0,52 0,84 0,15 0,39 0,62 0,13 0,34 0,54 0,12 0,31 0,49 T–X4 At 1,50 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 5% 10% 20% 30% 40–100% 432–X5 0,21 0,64 1,23 0,15 0,46 0,87 0,11 0,34 0,65 0,10 0,30 0,56 0,09 0,27 0,51 432–X5 442–X4 0,21 0,64 1,23 0,15 0,46 0,87 0,11 0,34 0,65 0,10 0,30 0,56 0,09 0,27 0,51 442–X4 432–X4 0,21 0,64 1,23 0,15 0,46 0,87 0,11 0,34 0,65 0,10 0,30 0,56 0,09 0,27 0,51 432–X4 T–X4 0,35 0,90 1,47 0,25 0,64 1,03 0,19 0,47 0,76 0,17 0,41 0,66 0,15 0,38 0,60 T–X4 kennametal.com B112
