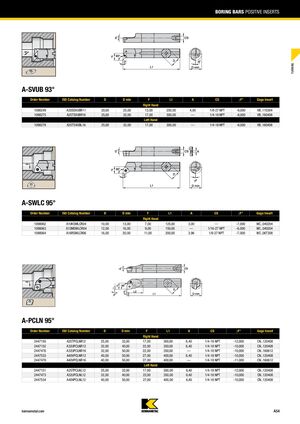

Расточные резцы с положительными пластинами
A-SVUB 93°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1098249 | A20SSVUBR11 | 20,00 | 25,00 | 13,00 | 250,00 | 4,00 | 1/8-27 NPT | -6,000 | VB..110304 |
| 1098275 | A25TSVUBR16 | 25,00 | 32,00 | 17,00 | 300,00 | — | 1/4-18 NPT | -6,000 | VB..160408 |
| Левая рука | |||||||||
| 1098278 | A25TSVUBL16 | 25,00 | 32,00 | 17,00 | 300,00 | — | 1/4-18 NPT | -6,000 | VB..160408 |
A-SWLC 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1098062 | A10KSWLCR04 | 10,00 | 13,00 | 7,00 | 125,00 | 3,00 | — | -7,000 | WC..040204 |
| 1098063 | A12MSWLCR04 | 12,00 | 16,00 | 9,00 | 150,00 | — | 1/16-27 NPT | -6,000 | WC..040204 |
| 1098064 | A16RSWLCR06 | 16,00 | 20,00 | 11,00 | 200,00 | 3,96 | 1/8-27 NPT | -7,000 | WC..06T308 |
A-PCLN 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 2447150 | A25TPCLNR12 | 25,00 | 32,00 | 17,00 | 300,00 | 6,40 | 1/4-18 NPT | -12,000 | CN..120408 |
| 2447152 | A32UPCLNR12 | 32,00 | 40,00 | 22,00 | 350,00 | 6,40 | 1/4-18 NPT | -10,000 | CN..120408 |
| 2447476 | A32UPCLNR16 | 32,00 | 50,00 | 22,00 | 350,00 | — | 1/4-18 NPT | -10,000 | CN..160612 |
| 2447533 | A40VPCLNR12 | 40,00 | 50,00 | 27,00 | 400,00 | 6,40 | 1/4-18 NPT | -10,000 | CN..120408 |
| 2447478 | A40VPCLNR16 | 40,00 | 50,00 | 27,00 | 400,00 | — | 1/4-18 NPT | -11,000 | CN..160612 |
| Левая рука | |||||||||
| 2447151 | A25TPCLNL12 | 25,00 | 32,00 | 17,00 | 300,00 | 6,40 | 1/4-18 NPT | -12,000 | CN..120408 |
| 2447473 | A32UPCLNL12 | 32,00 | 40,00 | 22,00 | 350,00 | 6,40 | 1/4-18 NPT | -10,000 | CN..120408 |
| 2447534 | A40VPCLNL12 | 40,00 | 50,00 | 27,00 | 400,00 | 6,40 | 1/4-18 NPT | -10,000 | CN..120408 |
