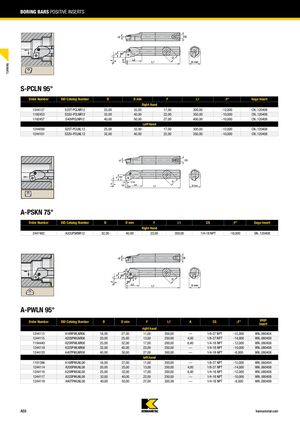

Расточные резцы с положительными пластинами
S-PCLN 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 1244127 | S25T-PCLNR12 | 25,00 | 32,00 | 17,00 | 300,00 | -12,000 | CN..120408 |
| 1192453 | S32U-PCLNR12 | 32,00 | 40,00 | 22,00 | 350,00 | -10,000 | CN..120408 |
| 1192457 | S40VPCLNR12 | 40,00 | 50,00 | 27,00 | 400,00 | -10,000 | CN..120408 |
| Левая рука | |||||||
| 1244099 | S25T-PCLNL12 | 25,00 | 32,00 | 17,00 | 300,00 | -12,000 | CN..120408 |
| 1244101 | S32U-PCLNL12 | 32,00 | 40,00 | 22,00 | 350,00 | -10,000 | CN..120408 |
A-PSKN 75°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 2447482 | A32UPSKNR12 | 32,00 | 40,00 | 22,00 | 350,00 | 1/4-18 NPT | -10,000 | SN..120408 |
A-PWLN 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1244113 | A16RPWLNR06 | 16,00 | 27,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -12,000 | WN..060404 |
| 1244115 | A20SPWLNR06 | 20,00 | 25,00 | 13,00 | 250,00 | 4,00 | 1/8-27 NPT | -14,000 | WN..060408 |
| 1194440 | A25RPWLNR08 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | WN..080408 |
| 1244118 | A32SPWLNR08 | 32,00 | 40,00 | 22,00 | 250,00 | — | 1/4-18 NPT | -10,000 | WN..080408 |
| 1244120 | A40TPWLNR08 | 40,00 | 50,00 | 27,00 | 300,00 | — | 1/4-18 NPT | -8,000 | WN..080408 |
| Левая рука | |||||||||
| 1191396 | A16RPWLNL06 | 16,00 | 27,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -12,000 | WN..060404 |
| 1244114 | A20SPWLNL06 | 20,00 | 25,00 | 13,00 | 250,00 | 4,00 | 1/8-27 NPT | -14,000 | WN..060408 |
| 1244116 | A25RPWLNL08 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | WN..080408 |
| 1244117 | A32SPWLNL08 | 32,00 | 40,00 | 22,00 | 250,00 | — | 1/4-18 NPT | -10,000 | WN..080408 |
| 1244119 | A40TPWLNL08 | 40,00 | 50,00 | 27,00 | 300,00 | — | 1/4-18 NPT | -8,000 | WN..080408 |
