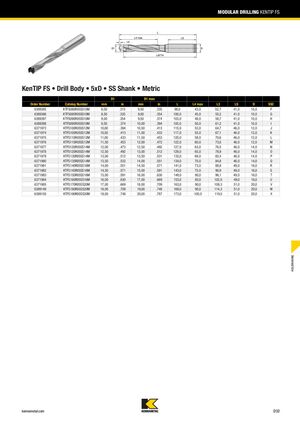

Модульное сверление KENTIP FS
KenTIP FS • Сверлильная оправка • 5xD • Хвостовик SS • Метрическая система
| Артикул | Каталожный номер | D1 мм | D1 дюйм | D1 макс мм | D1 макс дюйм | L | L4 макс | L3 | LS | D | SSC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6389385 | KTFS080R05SS10M | 8,00 | .315 | 8,50 | .335 | 98,0 | 43,0 | 52,7 | 41,0 | 10,0 | F |
| 6389386 | KTFS085R05SS10M | 8,50 | .335 | 9,00 | .354 | 100,0 | 45,0 | 55,2 | 41,0 | 10,0 | G |
| 6389387 | KTFS090R05SS10M | 9,00 | .354 | 9,50 | .374 | 103,0 | 48,0 | 58,7 | 41,0 | 10,0 | H |
| 6389388 | KTFS095R05SS10M | 9,50 | .374 | 10,00 | .394 | 105,0 | 50,0 | 61,2 | 41,0 | 10,0 | I |
| 6371973 | KTFS100R05SS12M | 10,00 | .394 | 10,50 | .413 | 115,0 | 53,0 | 64,7 | 46,0 | 12,0 | J |
| 6371974 | KTFS105R05SS12M | 10,50 | .413 | 11,00 | .433 | 117,0 | 55,0 | 67,1 | 46,0 | 12,0 | K |
| 6371975 | KTFS110R05SS12M | 11,00 | .433 | 11,50 | .453 | 120,0 | 58,0 | 70,6 | 46,0 | 12,0 | L |
| 6371976 | KTFS115R05SS12M | 11,50 | .453 | 12,00 | .472 | 122,0 | 60,0 | 73,0 | 46,0 | 12,0 | M |
| 6371977 | KTFS120R05SS14M | 12,00 | .473 | 12,50 | .492 | 127,0 | 63,0 | 76,5 | 46,0 | 14,0 | N |
| 6371978 | KTFS125R05SS14M | 12,50 | .492 | 13,00 | .512 | 129,0 | 65,0 | 78,9 | 46,0 | 14,0 | O |
| 6371979 | KTFS130R05SS14M | 13,00 | .512 | 13,50 | .531 | 132,0 | 68,0 | 82,4 | 46,0 | 14,0 | P |
| 6371980 | KTFS135R05SS14M | 13,50 | .532 | 14,00 | .551 | 134,0 | 70,0 | 84,8 | 46,0 | 14,0 | Q |
| 6371981 | KTFS140R05SS16M | 14,00 | .551 | 14,50 | .571 | 141,0 | 73,0 | 88,8 | 49,0 | 16,0 | R |
| 6371982 | KTFS145R05SS16M | 14,50 | .571 | 15,00 | .591 | 143,0 | 75,0 | 90,9 | 49,0 | 16,0 | S |
| 6371983 | KTFS150R05SS16M | 15,00 | .591 | 16,00 | .630 | 148,0 | 80,0 | 96,1 | 49,0 | 16,0 | T |
| 6371984 | KTFS160R05SS16M | 16,00 | .630 | 17,00 | .669 | 153,0 | 85,0 | 102,0 | 49,0 | 16,0 | U |
| 6371985 | KTFS170R05SS20M | 17,00 | .669 | 18,00 | .709 | 163,0 | 90,0 | 109,3 | 51,0 | 20,0 | V |
| 6389149 | KTFS180R05SS20M | 18,00 | .709 | 19,00 | .748 | 168,0 | 95,0 | 114,3 | 51,0 | 20,0 | W |
| 6389150 | KTFS190R05SS20M | 19,00 | .748 | 20,00 | .787 | 173,0 | 100,0 | 119,5 | 51,0 | 20,0 | X |
