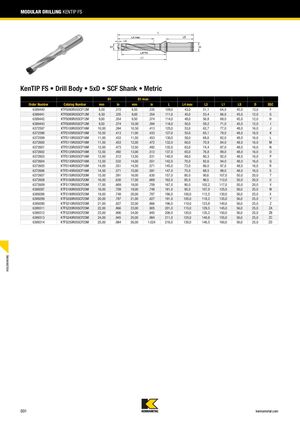

МОДУЛЬНОЕ СВЕРЛЕНИЕ KenTIP FS
KenTIP FS • Корпус сверла • 5xD • Хвостовик SCF • Метрическая система
| Номер заказа | Каталожный номер | D1 (мм) | D1 (дюйм) | D1 макс (мм) | D1 макс (дюйм) | L | L4 макс | L3 | L1 | LS | D | SSC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6389440 | KTFS080R05SCF12M | 8.00 | 0.315 | 8.50 | 0.335 | 109.0 | 43.0 | 51.1 | 64.0 | 45.0 | 12.0 | F |
| 6389441 | KTFS085R05SCF12M | 8.50 | 0.335 | 9.00 | 0.354 | 111.0 | 45.0 | 53.4 | 66.0 | 45.0 | 12.0 | G |
| 6389442 | KTFS090R05SCF12M | 9.00 | 0.354 | 9.50 | 0.374 | 114.0 | 48.0 | 56.8 | 69.0 | 45.0 | 12.0 | H |
| 6389443 | KTFS095R05SCF12M | 9.50 | 0.374 | 10.00 | 0.394 | 116.0 | 50.0 | 59.2 | 71.0 | 45.0 | 12.0 | I |
| 6372597 | KTFS100R05SCF16M | 10.00 | 0.394 | 10.50 | 0.413 | 125.0 | 53.0 | 62.7 | 77.0 | 48.0 | 16.0 | J |
| 6372598 | KTFS105R05SCF16M | 10.50 | 0.413 | 11.00 | 0.433 | 127.0 | 55.0 | 65.1 | 79.0 | 48.0 | 16.0 | K |
| 6372599 | KTFS110R05SCF16M | 11.00 | 0.433 | 11.50 | 0.453 | 130.0 | 58.0 | 68.6 | 82.0 | 48.0 | 16.0 | L |
| 6372600 | KTFS115R05SCF16M | 11.50 | 0.453 | 12.00 | 0.472 | 132.0 | 60.0 | 70.9 | 84.0 | 48.0 | 16.0 | M |
| 6372601 | KTFS120R05SCF16M | 12.00 | 0.473 | 12.50 | 0.492 | 135.0 | 63.0 | 74.4 | 87.0 | 48.0 | 16.0 | N |
| 6372602 | KTFS125R05SCF16M | 12.50 | 0.492 | 13.00 | 0.512 | 137.0 | 65.0 | 76.8 | 89.0 | 48.0 | 16.0 | O |
| 6372603 | KTFS130R05SCF16M | 13.00 | 0.512 | 13.50 | 0.531 | 140.0 | 68.0 | 80.3 | 92.0 | 48.0 | 16.0 | P |
| 6372604 | KTFS135R05SCF16M | 13.50 | 0.532 | 14.00 | 0.551 | 142.0 | 70.0 | 82.6 | 94.0 | 48.0 | 16.0 | Q |
| 6372605 | KTFS140R05SCF16M | 14.00 | 0.551 | 14.50 | 0.571 | 145.0 | 73.0 | 86.0 | 97.0 | 48.0 | 16.0 | R |
| 6372606 | KTFS145R05SCF16M | 14.50 | 0.571 | 15.00 | 0.591 | 147.0 | 75.0 | 88.5 | 99.0 | 48.0 | 16.0 | S |
| 6372607 | KTFS150R05SCF20M | 15.00 | 0.591 | 16.00 | 0.630 | 157.0 | 80.0 | 90.6 | 107.0 | 50.0 | 20.0 | T |
| 6372608 | KTFS160R05SCF20M | 16.00 | 0.630 | 17.00 | 0.669 | 162.0 | 85.0 | 96.5 | 112.0 | 50.0 | 20.0 | U |
| 6372609 | KTFS170R05SCF20M | 17.00 | 0.669 | 18.00 | 0.709 | 167.0 | 90.0 | 102.2 | 117.0 | 50.0 | 20.0 | V |
| 6389287 | KTFS180R05SCF25M | 18.00 | 0.709 | 19.00 | 0.748 | 181.0 | 95.0 | 107.0 | 125.0 | 56.0 | 25.0 | W |
| 6389288 | KTFS190R05SCF25M | 19.00 | 0.748 | 20.00 | 0.787 | 186.0 | 100.0 | 112.5 | 130.0 | 56.0 | 25.0 | X |
| 6389289 | KTFS200R05SCF25M | 20.00 | 0.787 | 21.00 | 0.827 | 191.0 | 105.0 | 118.2 | 135.0 | 56.0 | 25.0 | Y |
| 6389290 | KTFS210R05SCF25M | 21.00 | 0.827 | 22.00 | 0.866 | 196.0 | 110.0 | 123.8 | 140.0 | 56.0 | 25.0 | Z |
| 6389311 | KTFS220R05SCF25M | 22.00 | 0.866 | 23.00 | 0.905 | 201.0 | 115.0 | 129.5 | 145.0 | 56.0 | 25.0 | ZA |
| 6389312 | KTFS230R05SCF25M | 23.00 | 0.906 | 24.00 | 0.945 | 206.0 | 120.0 | 135.2 | 150.0 | 56.0 | 25.0 | ZB |
| 6389313 | KTFS240R05SCF25M | 24.00 | 0.945 | 25.00 | 0.984 | 211.0 | 125.0 | 140.8 | 155.0 | 56.0 | 25.0 | ZC |
| 6389314 | KTFS250R05SCF25M | 25.00 | 0.984 | 26.00 | 1.024 | 216.0 | 130.0 | 146.5 | 160.0 | 56.0 | 25.0 | ZD |
