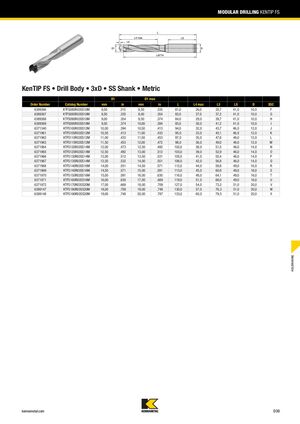

МОДУЛЬНОЕ СВЕРЛЕНИЕ KenTIP FS
KenTIP FS • Корпус сверла • 3xD • Прямой хвостовик • Метрическая система
| Номер заказа | Каталожный номер | D1 (мм) | D1 (дюйм) | D1 макс (мм) | D1 макс (дюйм) | L | L4 макс | L3 | LS | D | SSC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6389366 | KTFS080R03SS10M | 8.00 | 0.315 | 8.50 | 0.335 | 81.0 | 26.0 | 35.7 | 41.0 | 10.0 | F |
| 6389367 | KTFS085R03SS10M | 8.50 | 0.335 | 9.00 | 0.354 | 82.0 | 27.0 | 37.2 | 41.0 | 10.0 | G |
| 6389368 | KTFS090R03SS10M | 9.00 | 0.354 | 9.50 | 0.374 | 84.0 | 29.0 | 39.7 | 41.0 | 10.0 | H |
| 6389369 | KTFS095R03SS10M | 9.50 | 0.374 | 10.00 | 0.394 | 85.0 | 30.0 | 41.2 | 41.0 | 10.0 | I |
| 6371340 | KTFS100R03SS12M | 10.00 | 0.394 | 10.50 | 0.413 | 94.0 | 32.0 | 43.7 | 46.0 | 12.0 | J |
| 6371961 | KTFS105R03SS12M | 10.50 | 0.413 | 11.00 | 0.433 | 95.0 | 33.0 | 45.1 | 46.0 | 12.0 | K |
| 6371962 | KTFS110R03SS12M | 11.00 | 0.433 | 11.50 | 0.453 | 97.0 | 35.0 | 47.6 | 46.0 | 12.0 | L |
| 6371963 | KTFS115R03SS12M | 11.50 | 0.453 | 12.00 | 0.472 | 98.0 | 36.0 | 49.0 | 46.0 | 12.0 | M |
| 6371964 | KTFS120R03SS14M | 12.00 | 0.473 | 12.50 | 0.492 | 102.0 | 38.0 | 51.5 | 46.0 | 14.0 | N |
| 6371965 | KTFS125R03SS14M | 12.50 | 0.492 | 13.00 | 0.512 | 103.0 | 39.0 | 52.9 | 46.0 | 14.0 | O |
| 6371966 | KTFS130R03SS14M | 13.00 | 0.512 | 13.50 | 0.531 | 105.0 | 41.0 | 55.4 | 46.0 | 14.0 | P |
| 6371967 | KTFS135R03SS14M | 13.50 | 0.532 | 14.00 | 0.551 | 106.0 | 42.0 | 56.8 | 46.0 | 14.0 | Q |
| 6371968 | KTFS140R03SS16M | 14.00 | 0.551 | 14.50 | 0.571 | 112.0 | 44.0 | 59.8 | 49.0 | 16.0 | R |
| 6371969 | KTFS145R03SS16M | 14.50 | 0.571 | 15.00 | 0.591 | 113.0 | 45.0 | 60.9 | 49.0 | 16.0 | S |
| 6371970 | KTFS150R03SS16M | 15.00 | 0.591 | 16.00 | 0.630 | 116.0 | 48.0 | 64.1 | 49.0 | 16.0 | T |
| 6371971 | KTFS160R03SS16M | 16.00 | 0.630 | 17.00 | 0.669 | 119.0 | 51.0 | 68.0 | 49.0 | 16.0 | U |
| 6371972 | KTFS170R03SS20M | 17.00 | 0.669 | 18.00 | 0.709 | 127.0 | 54.0 | 73.3 | 51.0 | 20.0 | V |
| 6389147 | KTFS180R03SS20M | 18.00 | 0.709 | 19.00 | 0.748 | 130.0 | 57.0 | 76.3 | 51.0 | 20.0 | W |
| 6389148 | KTFS190R03SS20M | 19.00 | 0.748 | 20.00 | 0.787 | 133.0 | 60.0 | 79.5 | 51.0 | 20.0 | X |
