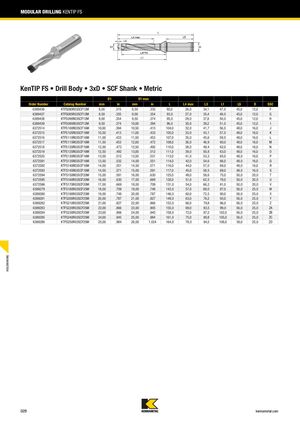

МОДУЛЬНОЕ СВЕРЛЕНИЕ KenTIP FS
KenTIP FS • Корпус сверла • 3xD • Хвостовик SCF • Метрическая система
| Номер заказа | Каталожный номер | D1 (мм) | D1 (дюйм) | D1 макс (мм) | D1 макс (дюйм) | L | L4 макс | L3 | L1 | LS | D | SSC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6389436 | KTFS080R03SCF12M | 8.00 | 0.315 | 8.50 | 0.335 | 92.0 | 26.0 | 34.1 | 47.0 | 45.0 | 12.0 | F |
| 6389437 | KTFS085R03SCF12M | 8.50 | 0.335 | 9.00 | 0.354 | 93.0 | 27.0 | 35.4 | 48.0 | 45.0 | 12.0 | G |
| 6389438 | KTFS090R03SCF12M | 9.00 | 0.354 | 9.50 | 0.374 | 95.0 | 29.0 | 37.8 | 50.0 | 45.0 | 12.0 | H |
| 6389439 | KTFS095R03SCF12M | 9.50 | 0.374 | 10.00 | 0.394 | 96.0 | 30.0 | 39.2 | 51.0 | 45.0 | 12.0 | I |
| 6372514 | KTFS100R03SCF16M | 10.00 | 0.394 | 10.50 | 0.413 | 104.0 | 32.0 | 41.7 | 56.0 | 48.0 | 16.0 | J |
| 6372515 | KTFS105R03SCF16M | 10.50 | 0.413 | 11.00 | 0.433 | 105.0 | 33.0 | 43.1 | 57.0 | 48.0 | 16.0 | K |
| 6372516 | KTFS110R03SCF16M | 11.00 | 0.433 | 11.50 | 0.453 | 107.0 | 35.0 | 45.6 | 59.0 | 48.0 | 16.0 | L |
| 6372517 | KTFS115R03SCF16M | 11.50 | 0.453 | 12.00 | 0.472 | 108.0 | 36.0 | 46.9 | 60.0 | 48.0 | 16.0 | M |
| 6372518 | KTFS120R03SCF16M | 12.00 | 0.473 | 12.50 | 0.492 | 110.0 | 38.0 | 49.4 | 62.0 | 48.0 | 16.0 | N |
| 6372519 | KTFS125R03SCF16M | 12.50 | 0.492 | 13.00 | 0.512 | 111.0 | 39.0 | 50.8 | 63.0 | 48.0 | 16.0 | O |
| 6372520 | KTFS130R03SCF16M | 13.00 | 0.512 | 13.50 | 0.531 | 113.0 | 41.0 | 53.3 | 65.0 | 48.0 | 16.0 | P |
| 6372591 | KTFS135R03SCF16M | 13.50 | 0.532 | 14.00 | 0.551 | 114.0 | 42.0 | 54.6 | 66.0 | 48.0 | 16.0 | Q |
| 6372592 | KTFS140R03SCF16M | 14.00 | 0.551 | 14.50 | 0.571 | 116.0 | 44.0 | 57.0 | 68.0 | 48.0 | 16.0 | R |
| 6372593 | KTFS145R03SCF16M | 14.50 | 0.571 | 15.00 | 0.591 | 117.0 | 45.0 | 58.5 | 69.0 | 48.0 | 16.0 | S |
| 6372594 | KTFS150R03SCF20M | 15.00 | 0.591 | 16.00 | 0.630 | 125.0 | 48.0 | 58.6 | 75.0 | 50.0 | 20.0 | T |
| 6372595 | KTFS160R03SCF20M | 16.00 | 0.630 | 17.00 | 0.669 | 128.0 | 51.0 | 62.5 | 78.0 | 50.0 | 20.0 | U |
| 6372596 | KTFS170R03SCF20M | 17.00 | 0.669 | 18.00 | 0.709 | 131.0 | 54.0 | 66.2 | 81.0 | 50.0 | 20.0 | V |
| 6389279 | KTFS180R03SCF25M | 18.00 | 0.709 | 19.00 | 0.748 | 143.0 | 57.0 | 69.0 | 87.0 | 56.0 | 25.0 | W |
| 6389280 | KTFS190R03SCF25M | 19.00 | 0.748 | 20.00 | 0.787 | 146.0 | 60.0 | 72.5 | 90.0 | 56.0 | 25.0 | X |
| 6389281 | KTFS200R03SCF25M | 20.00 | 0.787 | 21.00 | 0.827 | 149.0 | 63.0 | 76.2 | 93.0 | 56.0 | 25.0 | Y |
| 6389282 | KTFS210R03SCF25M | 21.00 | 0.827 | 22.00 | 0.866 | 152.0 | 66.0 | 79.8 | 96.0 | 56.0 | 25.0 | Z |
| 6389283 | KTFS220R03SCF25M | 22.00 | 0.866 | 23.00 | 0.905 | 155.0 | 69.0 | 83.5 | 99.0 | 56.0 | 25.0 | ZA |
| 6389284 | KTFS230R03SCF25M | 23.00 | 0.906 | 24.00 | 0.945 | 158.0 | 72.0 | 87.2 | 102.0 | 56.0 | 25.0 | ZB |
| 6389285 | KTFS240R03SCF25M | 24.00 | 0.945 | 25.00 | 0.984 | 161.0 | 75.0 | 90.8 | 105.0 | 56.0 | 25.0 | ZC |
| 6389286 | KTFS250R03SCF25M | 25.00 | 0.984 | 26.00 | 1.024 | 164.0 | 78.0 | 94.5 | 108.0 | 56.0 | 25.0 | ZD |
