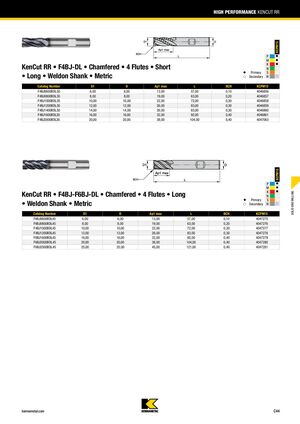

HIGH PERFORMANCE KENCUT RR KCPM15 P 䢇 M 䢇 K 䢇 KenCut RR • F4BJ-DL • Chamfered • 4 Flutes • Short N 䢇 Primary S • Long • Weldon Shank • Metric 嘷 Secondary H 嘷 Catalog Number D1 D Ap1 max L BCH KCPM15 F4BJ0600BDL30 6,00 6,00 13,00 57,00 0,10 4046856 F4BJ0800BDL30 8,00 8,00 19,00 63,00 0,20 4046857 F4BJ1000BDL30 10,00 10,00 22,00 72,00 0,30 4046858 F4BJ1200BDL30 12,00 12,00 26,00 83,00 0,30 4046859 F4BJ1400BDL30 14,00 14,00 26,00 83,00 0,30 4046860 F4BJ1600BDL30 16,00 16,00 32,00 92,00 0,40 4046861 F4BJ2000BDL30 20,00 20,00 38,00 104,00 0,40 4047063 KCPM15 P 䢇 M 䢇 K 䢇 SOLID END MILLING KenCut RR • F4BJ-F6BJ-DL • Chamfered • 4 Flutes • Long N 䢇 Primary S • Weldon Shank • Metric 嘷 Secondary H 嘷 Catalog Number D1 D Ap1 max L BCH KCPM15 F4BJ0600BDL45 6,00 6,00 13,00 57,00 0,10 4047275 F4BJ0800BDL45 8,00 8,00 19,00 63,00 0,20 4047276 F4BJ1000BDL45 10,00 10,00 22,00 72,00 0,30 4047277 F4BJ1200BDL45 12,00 12,00 26,00 83,00 0,30 4047278 F6BJ1600BDL45 16,00 16,00 32,00 92,00 0,40 4047279 F6BJ2000BDL45 20,00 20,00 38,00 104,00 0,40 4047280 F6BJ2500BDL45 25,00 25,00 45,00 121,00 0,40 4047281 kennametal.com C44
