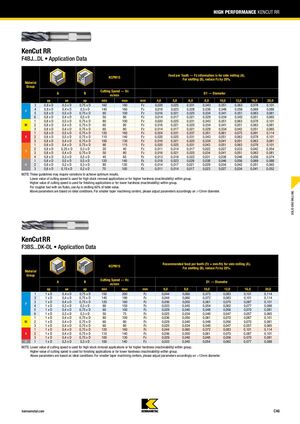

HIGH PERFORMANCE KENCUT RR KenCut RR F4BJ...DL • Application Data Feed per Tooth — Fz information is for side milling (A). KCPM15 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 4,0 5,0 6,0 8,0 10,0 12,0 16,0 20,0 3 0,8 x D 0,5 x D 0,75 x D 160 180 Fz 0,020 0,025 0,031 0,043 0,051 0,063 0,078 0,101 4 0,8 x D 0,4 x D 0,5 x D 140 160 Fz 0,018 0,023 0,028 0,038 0,046 0,056 0,069 0,088 P 5 0,8 x D 0,5 x D 0,75 x D 60 100 Fz 0,016 0,021 0,025 0,034 0,041 0,051 0,063 0,081 6 0,8 x D 0,4 x D 0,5 x D 50 80 Fz 0,014 0,017 0,021 0,029 0,034 0,042 0,051 0,065 1 0,8 x D 0,5 x D 0,75 x D 80 100 Fz 0,020 0,025 0,031 0,043 0,051 0,063 0,078 0,101 M 2 0,8 x D 0,4 x D 0,75 x D 60 80 Fz 0,016 0,021 0,025 0,034 0,041 0,051 0,063 0,081 3 0,8 x D 0,4 x D 0,75 x D 60 80 Fz 0,014 0,017 0,021 0,029 0,034 0,042 0,051 0,065 1 0,8 x D 0,5 x D 0,75 x D 120 160 Fz 0,024 0,031 0,037 0,051 0,061 0,075 0,091 0,114 K 2 0,8 x D 0,5 x D 0,75 x D 110 140 Fz 0,020 0,025 0,031 0,043 0,051 0,063 0,078 0,101 3 0,8 x D 0,4 x D 0,75 x D 100 130 Fz 0,016 0,021 0,025 0,034 0,041 0,051 0,063 0,081 1 0,8 x D 0,4 x D 0,75 x D 90 115 Fz 0,020 0,025 0,031 0,043 0,051 0,063 0,078 0,101 2 0,8 x D 0,25 x D 0,3 x D 20 40 Fz 0,011 0,014 0,017 0,022 0,027 0,033 0,042 0,054 S 3 0,8 x D 0,4 x D 0,75 x D 50 80 Fz 0,016 0,021 0,025 0,034 0,041 0,051 0,063 0,081 4 0,8 x D 0,3 x D 0,5 x D 45 65 Fz 0,013 0,018 0,022 0,031 0,038 0,046 0,058 0,074 1 0,8 x D 0,5 x D 0,5 x D 120 140 Fz 0,018 0,023 0,028 0,038 0,046 0,056 0,069 0,088 H 2 0,8 x D 0,2 x D 0,3 x D 80 130 Fz 0,014 0,017 0,021 0,029 0,034 0,042 0,051 0,065 3 0,8 x D 0,15 x D 0,2 x D 70 100 Fz 0,011 0,014 0,017 0,023 0,027 0,034 0,041 0,052 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. For rougher tool with six flutes, use Ap in slotting 60% of table value. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. SOLID END MILLING KenCut RR F3BS...DK-DL • Application Data Recommended feed per tooth (Fz = mm/th) for side milling (A). KCPM15 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 6,0 8,0 10,0 12,0 16,0 20,0 1 1xD 0,4 x D 0,75 x D 150 200 Fz 0,044 0,060 0,072 0,083 0,101 0,114 2 1xD 0,4 x D 0,75 x D 140 190 Fz 0,044 0,060 0,072 0,083 0,101 0,114 3 1xD 0,4 x D 0,75 x D 120 160 Fz 0,036 0,050 0,061 0,070 0,087 0,101 P 4 1xD 0,3 x D 0,3 x D 90 150 Fz 0,033 0,045 0,054 0,062 0,077 0,088 5 1xD 0,4 x D 0,75 x D 60 100 Fz 0,029 0,040 0,048 0,056 0,070 0,081 6 1xD 0,3 x D 0,3 x D 50 75 Fz 0,025 0,034 0,040 0,047 0,057 0,065 1 1xD 0,4 x D 0,75 x D 80 100 Fz 0,036 0,050 0,061 0,070 0,087 0,101 M 2 1xD 0,4 x D 0,75 x D 60 80 Fz 0,029 0,040 0,048 0,056 0,070 0,081 3 1xD 0,4 x D 0,75 x D 60 80 Fz 0,025 0,034 0,040 0,047 0,057 0,065 1 1xD 0,4 x D 0,75 x D 120 160 Fz 0,044 0,060 0,072 0,083 0,101 0,114 K 2 1xD 0,4 x D 0,75 x D 110 140 Fz 0,036 0,050 0,061 0,070 0,087 0,101 3 1xD 0,4 x D 0,75 x D 100 130 Fz 0,029 0,040 0,048 0,056 0,070 0,081 H 1 1xD 0,3 x D 0,3 x D 100 140 Fz 0,033 0,045 0,054 0,062 0,077 0,088 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. kennametal.com C46
