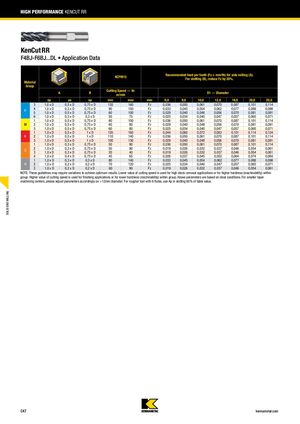

HIGH PERFORMANCE KENCUT RR KenCut RR F4BJ-F6BJ...DL • Application Data Recommended feed per tooth (Fz = mm/th) for side milling (A). KCPM15 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 6,0 8,0 10,0 12,0 16,0 20,0 25,0 3 1,0 x D 0,5 x D 0,75 x D 120 160 Fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 4 1,0 x D 0,3 x D 0,75 x D 90 150 Fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 P 5 1,0 x D 0,5 x D 0,75 x D 60 100 Fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 6 1,0 x D 0,3 x D 0,3 x D 50 75 Fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 1,0 x D 0,5 x D 0,75 x D 80 100 Fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 M 2 1,0 x D 0,5 x D 0,75 x D 60 80 Fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 3 1,0 x D 0,5 x D 0,75 x D 60 80 Fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 1,0 x D 0,5 x D 1xD 120 160 Fz 0,044 0,060 0,072 0,083 0,101 0,114 0,124 K 2 1,0 x D 0,5 x D 1xD 110 140 Fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 3 1,0 x D 0,5 x D 1xD 100 130 Fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 1 1,0 x D 0,3 x D 0,75 x D 50 90 Fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 2 1,0 x D 0,3 x D 0,75 x D 50 90 Fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 S 3 1,0 x D 0,3 x D 0,75 x D 20 40 Fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 4 1,0 x D 0,4 x D 0,75 x D 45 65 Fz 0,026 0,037 0,045 0,052 0,064 0,074 0,084 1 1,0 x D 0,3 x D 0,3 x D 80 140 Fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 H 2 1,0 x D 0,2 x D 0,2 x D 70 120 Fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 3 1,0 x D 0,2 x D 0,2 x D 60 90 Fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. For rougher tool with 6 flutes, use Ap in slotting 60% of table value. SOLID END MILLING C47 kennametal.com
