Модульное сверление KENTIP FS

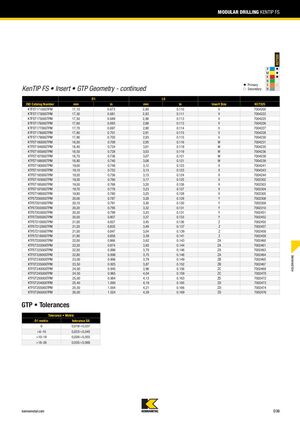

KenTIP FS • Вставка • Геометрия GTP — продолжение
| Каталожный номер ISO | D1 мм | D1 дюйм | L5 мм | L5 дюйм | Размер вставки | KC7325 |
|---|---|---|---|---|---|---|
| KTFST17100GTPM | 17,10 | 0.673 | 2,80 | 0.110 | V | 7004200 |
| KTFST17300GTPM | 17,30 | 0.681 | 2,83 | 0.111 | V | 7004222 |
| KTFST17500GTPM | 17,50 | 0.689 | 2,86 | 0.113 | V | 7004225 |
| KTFST17600GTPM | 17,60 | 0.693 | 2,88 | 0.113 | V | 7004226 |
| KTFST17700GTPM | 17,70 | 0.697 | 2,90 | 0.114 | V | 7004227 |
| KTFST17800GTPM | 17,80 | 0.701 | 2,91 | 0.115 | V | 7004228 |
| KTFST17900GTPM | 17,90 | 0.705 | 2,93 | 0.115 | V | 7004230 |
| KTFST18000GTPM | 18,00 | 0.709 | 2,95 | 0.116 | W | 7004231 |
| KTFST18400GTPM | 18,40 | 0.724 | 3,01 | 0.119 | W | 7004235 |
| KTFST18500GTPM | 18,50 | 0.728 | 3,03 | 0.119 | W | 7004236 |
| KTFST18700GTPM | 18,70 | 0.736 | 3,07 | 0.121 | W | 7004238 |
| KTFST18800GTPM | 18,80 | 0.740 | 3,08 | 0.121 | W | 7004239 |
| KTFST19000GTPM | 19,00 | 0.748 | 3,12 | 0.123 | X | 7004241 |
| KTFST19100GTPM | 19,10 | 0.752 | 3,13 | 0.123 | X | 7004243 |
| KTFST19200GTPM | 19,20 | 0.756 | 3,15 | 0.124 | X | 7004244 |
| KTFST19300GTPM | 19,30 | 0.760 | 3,17 | 0.125 | X | 7002302 |
| KTFST19500GTPM | 19,50 | 0.768 | 3,20 | 0.126 | X | 7002303 |
| KTFST19700GTPM | 19,70 | 0.776 | 3,23 | 0.127 | X | 7002304 |
| KTFST19800GTPM | 19,80 | 0.780 | 3,25 | 0.128 | X | 7002305 |
| KTFST20000GTPM | 20,00 | 0.787 | 3,28 | 0.129 | Y | 7002308 |
| KTFST20100GTPM | 20,10 | 0.791 | 3,30 | 0.130 | Y | 7002309 |
| KTFST20200GTPM | 20,20 | 0.795 | 3,32 | 0.131 | Y | 7002310 |
| KTFST20300GTPM | 20,30 | 0.799 | 3,33 | 0.131 | Y | 7002451 |
| KTFST20500GTPM | 20,50 | 0.807 | 3,37 | 0.133 | Y | 7002452 |
| KTFST21000GTPM | 21,00 | 0.827 | 3,45 | 0.136 | Z | 7002455 |
| KTFST21200GTPM | 21,20 | 0.835 | 3,49 | 0.137 | Z | 7002457 |
| KTFST21500GTPM | 21,50 | 0.847 | 3,54 | 0.139 | Z | 7002458 |
| KTFST21800GTPM | 21,80 | 0.858 | 3,59 | 0.141 | Z | 7002459 |
| KTFST22000GTPM | 22,00 | 0.866 | 3,62 | 0.143 | ZA | 7002460 |
| KTFST22200GTPM | 22,20 | 0.874 | 3,65 | 0.144 | ZA | 7002461 |
| KTFST22500GTPM | 22,50 | 0.886 | 3,70 | 0.146 | ZA | 7002463 |
| KTFST22800GTPM | 22,80 | 0.898 | 3,75 | 0.148 | ZA | 7002464 |
| KTFST23000GTPM | 23,00 | 0.906 | 3,79 | 0.149 | ZB | 7002465 |
| KTFST23500GTPM | 23,50 | 0.925 | 3,87 | 0.152 | ZB | 7002467 |
| KTFST24000GTPM | 24,00 | 0.945 | 3,96 | 0.156 | ZC | 7002469 |
| KTFST24500GTPM | 24,50 | 0.965 | 4,04 | 0.159 | ZC | 7002470 |
| KTFST25000GTPM | 25,00 | 0.984 | 4,13 | 0.163 | ZD | 7002472 |
| KTFST25400GTPM | 25,40 | 1.000 | 4,19 | 0.165 | ZD | 7002473 |
| KTFST25500GTPM | 25,50 | 1.004 | 4,21 | 0.166 | ZD | 7002474 |
| KTFST26000GTPM | 26,00 | 1.024 | 4,29 | 0.169 | ZD | 7002476 |
Геометрия GTP • Допуски
| D1 метрическая | Допуск метрическая S8 |
|---|---|
| 6 | 0,019/+0,037 |
| >6–10 | 0,023/+0,045 |
| >10–18 | 0,028/+0,055 |
| >18–26 | 0,035/+0,068 |
