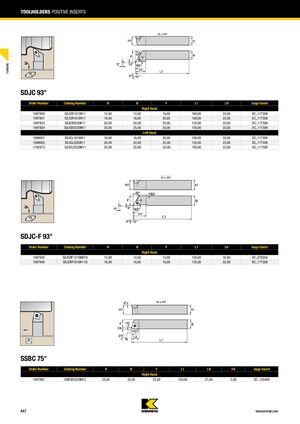

Державки резцов с положительными пластинами
SDJC 93°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 1097850 | SDJCR1212N11 | 12,00 | 12,00 | 16,00 | 160,00 | 22,00 | DC..11T308 |
| 1097851 | SDJCR1616H11 | 16,00 | 16,00 | 20,00 | 100,00 | 22,00 | DC..11T308 |
| 1097853 | SDJCR2020K11 | 20,00 | 20,00 | 25,00 | 125,00 | 22,00 | DC..11T308 |
| 1097854 | SDJCR2525M11 | 25,00 | 25,00 | 32,00 | 150,00 | 22,00 | DC..11T308 |
| Левая рука | |||||||
| 1098001 | SDJCL1616H11 | 16,00 | 16,00 | 20,00 | 100,00 | 22,00 | DC..11T308 |
| 1098003 | SDJCL2020K11 | 20,00 | 20,00 | 25,00 | 125,00 | 22,00 | DC..11T308 |
| 1192473 | SDJCL2525M11 | 25,00 | 25,00 | 32,00 | 150,00 | 22,00 | DC..11T308 |
SDJC-F 93°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 1097845 | SDJCRF1212M07Q | 12,00 | 12,00 | 12,00 | 150,00 | 16,00 | DC..070204 |
| 1097846 | SDJCRF1616K11Q | 16,00 | 16,00 | 16,00 | 125,00 | 22,00 | DC..11T308 |
SSBC 75°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 1097867 | SSBCR2525M12 | 25,00 | 25,00 | 22,00 | 150,00 | 21,00 | 3,06 | SC..120408 |
