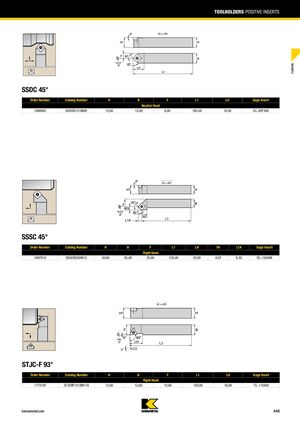

Державки резцов с положительными пластинами
SSDC 45°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Нейтральная рука | |||||||
| 1098005 | SSDCN1212N09 | 12,00 | 12,00 | 6,00 | 160,00 | 18,00 | SC..09T308 |
SSSC 45°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | L1A | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1097810 | SSSCR2020K12 | 20,00 | 20,00 | 25,00 | 125,00 | 25,00 | 8,07 | 8,32 | SC..120408 |
STJC-F 93°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 1772197 | STJCRF1212M11Q | 12,00 | 12,00 | 12,00 | 150,00 | 16,00 | TC..110204 |
