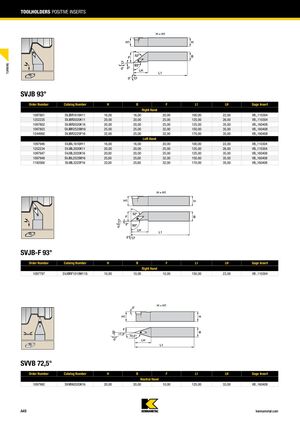

TOOLHOLDERS POSITIVE INSERTS TURNING SVJB 93° Order Number Catalog Number H B F L1 LH Gage Insert Right Hand 1097801 SVJBR1616H11 16,00 16,00 20,00 100,00 22,00 VB,,110304 1252235 SVJBR2020K11 20,00 20,00 25,00 125,00 26,00 VB,,110304 1097802 SVJBR2020K16 20,00 20,00 25,00 125,00 35,00 VB,,160408 1097803 SVJBR2525M16 25,00 25,00 32,00 150,00 35,00 VB,,160408 1244992 SVJBR3225P16 32,00 25,00 32,00 170,00 35,00 VB,,160408 Left Hand 1097946 SVJBL1616H11 16,00 16,00 20,00 100,00 22,00 VB,,110304 1252234 SVJBL2020K11 20,00 20,00 25,00 125,00 26,00 VB,,110304 1097947 SVJBL2020K16 20,00 20,00 25,00 125,00 35,00 VB,,160408 1097948 SVJBL2525M16 25,00 25,00 32,00 150,00 35,00 VB,,160408 1192560 SVJBL3225P16 32,00 25,00 32,00 170,00 35,00 VB,,160408 SVJB-F 93° Order Number Catalog Number H B F L1 LH Gage Insert Right Hand 1097797 SVJBRF1010M11Q 10,00 10,00 10,00 150,00 23,00 VB..110304 SVVB 72,5° Order Number Catalog Number H B F L1 LH Gage Insert Neutral Hand 1097992 SVVBN2020K16 20,00 20,00 10,00 125,00 33,00 VB..160408 A49 kennametal.com
