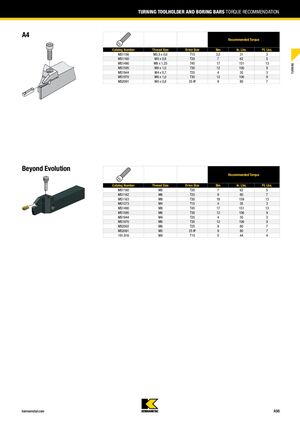

Рекомендации по крутящему моменту для державок и скучивающих штанг
A4
| Номер каталога | Размер резьбы | Размер привода | Н·м | Дюйм·фунт | Фут·фунт |
|---|---|---|---|---|---|
| MS1156 | M3,5 x 0,6 | T15 | 3,5 | 31 | 3 |
| MS1160 | M5 x 0,8 | T20 | 7 | 62 | 5 |
| MS1490 | M8 x 1,25 | T45 | 17 | 151 | 13 |
| MS1595 | M6 x 1,0 | T30 | 12 | 106 | 9 |
| MS1944 | M4 x 0,7 | T25 | 4 | 35 | 3 |
| MS1970 | M6 x 1,0 | T30 | 12 | 106 | 9 |
| MS2091 | M5 x 0,8 | 25 IP | 9 | 80 | 7 |
Beyond Evolution
| Номер каталога | Размер резьбы | Размер привода | Н·м | Дюйм·фунт | Фут·фунт |
|---|---|---|---|---|---|
| MS1160 | M5 | T20 | 7 | 62 | 5 |
| MS1162 | M6 | T25 | 9 | 80 | 7 |
| MS1163 | M8 | T30 | 18 | 159 | 13 |
| MS1273 | M4 | T15 | 4 | 35 | 3 |
| MS1490 | M8 | T45 | 17 | 151 | 13 |
| MS1595 | M6 | T30 | 12 | 106 | 9 |
| MS1944 | M4 | T25 | 4 | 35 | 3 |
| MS1970 | M6 | T30 | 12 | 106 | 9 |
| MS2002 | M6 | T25 | 9 | 80 | 7 |
| MS2091 | M5 | 25 IP | 9 | 80 | 7 |
| 191.916 | M4 | T15 | 5 | 44 | 4 |
