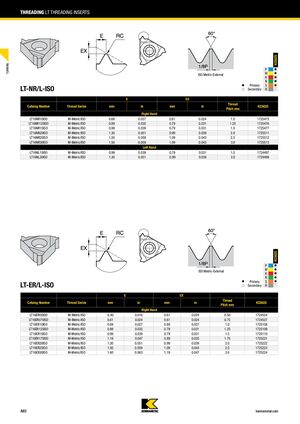

Резьбовые пластины LT
Метрическая ISO внешняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Шаг мм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16NR10ISO | М-Метрическая/ISO | 0.69 | 0.027 | 0.61 | 0.024 | 1.0 | 1725475 |
| LT16NR125ISO | М-Метрическая/ISO | 0.89 | 0.035 | 0.79 | 0.031 | 1.25 | 1725476 |
| LT16NR15ISO | М-Метрическая/ISO | 0.99 | 0.039 | 0.79 | 0.031 | 1.5 | 1725477 |
| LT16NR20ISO | М-Метрическая/ISO | 1.30 | 0.051 | 0.99 | 0.039 | 2.0 | 1725511 |
| LT16NR25ISO | М-Метрическая/ISO | 1.50 | 0.059 | 1.09 | 0.043 | 2.5 | 1725512 |
| LT16NR30ISO | М-Метрическая/ISO | 1.50 | 0.059 | 1.09 | 0.043 | 3.0 | 1725513 |
| Левосторонняя резьба | |||||||
| LT16NL15ISO | М-Метрическая/ISO | 0.99 | 0.039 | 0.79 | 0.031 | 1.5 | 1724497 |
| LT16NL20ISO | М-Метрическая/ISO | 1.30 | 0.051 | 0.99 | 0.039 | 2.0 | 1724499 |
Метрическая ISO внешняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Шаг мм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16ER05ISO | М-Метрическая/ISO | 0.40 | 0.016 | 0.61 | 0.024 | 0.50 | 1724524 |
| LT16ER075ISO | М-Метрическая/ISO | 0.61 | 0.024 | 0.61 | 0.024 | 0.75 | 1724527 |
| LT16ER10ISO | М-Метрическая/ISO | 0.69 | 0.027 | 0.69 | 0.027 | 1.0 | 1725108 |
| LT16ER125ISO | М-Метрическая/ISO | 0.89 | 0.035 | 0.79 | 0.031 | 1.25 | 1725109 |
| LT16ER15ISO | М-Метрическая/ISO | 0.99 | 0.039 | 0.79 | 0.031 | 1.5 | 1725110 |
| LT16ER175ISO | М-Метрическая/ISO | 1.19 | 0.047 | 0.89 | 0.035 | 1.75 | 1725221 |
| LT16ER20ISO | М-Метрическая/ISO | 1.30 | 0.051 | 0.99 | 0.039 | 2.0 | 1725222 |
| LT16ER25ISO | М-Метрическая/ISO | 1.50 | 0.059 | 1.09 | 0.043 | 2.5 | 1725223 |
| LT16ER30ISO | М-Метрическая/ISO | 1.60 | 0.063 | 1.19 | 0.047 | 3.0 | 1725224 |
