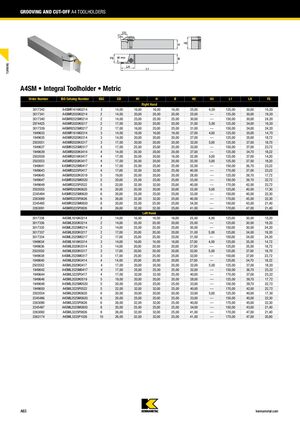

ИНСТРУМЕНТАЛЬНЫЕ ДЕРЖАВКИ A4 ДЛЯ НАРЕЗАНИЯ КАНАВОК И ОТРЕЗКИ
A4SM • Цельная державка • Метрическая
| Номер заказа | Номер каталога ISO | SSC | CD | H1 | H | B | H2 | H3 | L1 | LH | FS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое вращение | |||||||||||
| 3017342 | A4SMR1616K0214 | 2 | 14,00 | 16,00 | 16,00 | 16,00 | 25,00 | 4,00 | 125,00 | 30,00 | 15,20 |
| 3017341 | A4SMR2020K0214 | 2 | 14,00 | 20,00 | 20,00 | 20,00 | 25,00 | — | 125,00 | 30,00 | 19,20 |
| 3017340 | A4SMR2525M0214 | 2 | 14,00 | 25,00 | 25,00 | 25,00 | 30,00 | — | 150,00 | 30,00 | 24,20 |
| 2974425 | A4SMR2020K0217 | 2 | 17,00 | 20,00 | 20,00 | 20,00 | 31,00 | 5,00 | 125,00 | 34,00 | 19,20 |
| 3017339 | A4SMR2525M0217 | 2 | 17,00 | 16,00 | 25,00 | 25,00 | 31,00 | — | 150,00 | 34,00 | 24,20 |
| 1949633 | A4SMR1616K0314 | 3 | 14,00 | 16,00 | 16,00 | 16,00 | 27,00 | 4,00 | 125,00 | 35,00 | 14,70 |
| 1949635 | A4SMR2020K0314 | 3 | 14,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 35,00 | 18,72 |
| 2503551 | A4SMR2020K0317 | 3 | 17,00 | 20,00 | 20,00 | 20,00 | 32,00 | 5,00 | 125,00 | 37,00 | 18,70 |
| 1949637 | A4SMR2525M0317 | 3 | 17,00 | 25,00 | 25,00 | 25,00 | 32,00 | — | 150,00 | 37,00 | 23,72 |
| 1949639 | A4SMR2020K0414 | 4 | 14,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 34,70 | 18,22 |
| 2503559 | A4SMR2016K0417 | 4 | 17,00 | 20,00 | 20,00 | 16,00 | 32,00 | 5,00 | 125,00 | 37,00 | 14,20 |
| 2503553 | A4SMR2020K0417 | 4 | 17,00 | 20,00 | 20,00 | 20,00 | 32,00 | 5,00 | 125,00 | 37,00 | 18,20 |
| 1949641 | A4SMR2525M0417 | 4 | 17,00 | 25,00 | 25,00 | 25,00 | 32,00 | — | 150,00 | 36,70 | 23,22 |
| 1949643 | A4SMR3225P0417 | 4 | 17,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 37,00 | 23,22 |
| 1949645 | A4SMR2020K0519 | 5 | 19,00 | 20,00 | 20,00 | 20,00 | 28,00 | — | 125,00 | 39,70 | 17,72 |
| 1949647 | A4SMR2525M0520 | 5 | 20,00 | 25,00 | 25,00 | 25,00 | 33,00 | — | 150,00 | 39,70 | 22,72 |
| 1949649 | A4SMR3225P0522 | 5 | 22,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 42,00 | 22,72 |
| 2503555 | A4SMR2020K0620 | 6 | 20,00 | 20,00 | 20,00 | 20,00 | 33,00 | 5,00 | 125,00 | 40,00 | 17,30 |
| 2245484 | A4SMR2525M0620 | 6 | 20,00 | 25,00 | 25,00 | 25,00 | 33,00 | — | 150,00 | 40,00 | 22,30 |
| 2263089 | A4SMR3225P0626 | 6 | 26,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 45,00 | 22,30 |
| 2245485 | A4SMR2525M0820 | 8 | 20,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 43,00 | 21,40 |
| 2263091 | A4SMR3225P0826 | 8 | 26,00 | 32,00 | 32,00 | 25,00 | 41,00 | — | 170,00 | 47,00 | 21,40 |
| Левое вращение | |||||||||||
| 3017338 | A4SML1616K0214 | 2 | 14,00 | 16,00 | 16,00 | 16,00 | 25,00 | 4,00 | 125,00 | 30,00 | 15,20 |
| 3017336 | A4SML2020K0214 | 2 | 14,00 | 20,00 | 20,00 | 20,00 | 25,00 | — | 125,00 | 30,00 | 19,20 |
| 3017335 | A4SML2525M0214 | 2 | 14,00 | 25,00 | 25,00 | 25,00 | 30,00 | — | 150,00 | 30,00 | 24,20 |
| 3017337 | A4SML2020K0217 | 2 | 17,00 | 20,00 | 20,00 | 20,00 | 31,00 | 5,00 | 125,00 | 34,00 | 19,20 |
| 3017334 | A4SML2525M0217 | 2 | 17,00 | 25,00 | 25,00 | 25,00 | 31,00 | — | 150,00 | 34,00 | 24,20 |
| 1949634 | A4SML1616K0314 | 3 | 14,00 | 16,00 | 16,00 | 16,00 | 27,00 | 4,00 | 125,00 | 35,00 | 14,72 |
| 1949636 | A4SML2020K0314 | 3 | 14,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 35,00 | 18,72 |
| 2503550 | A4SML2020K0317 | 3 | 17,00 | 20,00 | 20,00 | 20,00 | 32,00 | 5,00 | 125,00 | 37,00 | 18,70 |
| 1949638 | A4SML2525M0317 | 3 | 17,00 | 25,00 | 25,00 | 25,00 | 32,00 | — | 150,00 | 37,00 | 23,72 |
| 1949640 | A4SML2020K0414 | 4 | 14,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 34,70 | 18,22 |
| 2503552 | A4SML2020K0417 | 4 | 17,00 | 20,00 | 20,00 | 20,00 | 32,00 | 5,00 | 125,00 | 37,00 | 18,20 |
| 1949642 | A4SML2525M0417 | 4 | 17,00 | 25,00 | 25,00 | 25,00 | 32,00 | — | 150,00 | 36,70 | 23,22 |
| 1949644 | A4SML3225P0417 | 4 | 17,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 37,00 | 23,22 |
| 1949646 | A4SML2020K0519 | 5 | 19,00 | 20,00 | 20,00 | 20,00 | 28,00 | — | 125,00 | 39,70 | 17,72 |
| 1949648 | A4SML2525M0520 | 5 | 20,00 | 25,00 | 25,00 | 25,00 | 33,00 | — | 150,00 | 39,70 | 22,72 |
| 1949650 | A4SML3225P0522 | 5 | 22,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 42,00 | 22,72 |
| 2503554 | A4SML2020K0620 | 6 | 20,00 | 20,00 | 20,00 | 20,00 | 33,00 | 5,00 | 125,00 | 40,00 | 17,30 |
| 2245486 | A4SML2525M0620 | 6 | 20,00 | 25,00 | 25,00 | 25,00 | 33,00 | — | 150,00 | 40,00 | 22,30 |
| 2263090 | A4SML3225P0626 | 6 | 26,00 | 32,00 | 32,00 | 25,00 | 40,00 | — | 170,00 | 45,00 | 22,30 |
| 2245487 | A4SML2525M0820 | 8 | 20,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 43,00 | 21,40 |
| 2263092 | A4SML3225P0826 | 8 | 26,00 | 32,00 | 32,00 | 25,00 | 41,00 | — | 170,00 | 47,00 | 21,40 |
| 2263174 | A4SML3225P1026 | 10 | 26,00 | 32,00 | 32,00 | 25,00 | 41,00 | — | 170,00 | 47,00 | 20,80 |
