Пластины для обработки канавок и отрезки A4
Обработка

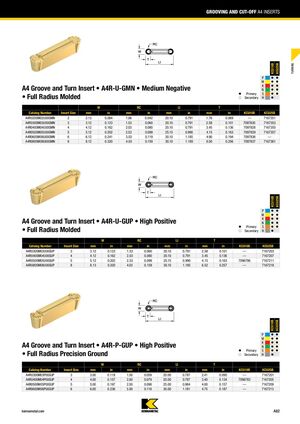

Пластина для обработки канавок и торцев A4R-U-GMN • Средняя отрицательная геометрия
Полный радиус, формованная
| Артикул | Размер | W, мм | W, дюйм | RC, мм | RC, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4R0205M02U00GMN | 2 | 2.13 | 0.084 | 1.06 | 0.042 | 20.10 | 0.791 | 1.76 | 0.069 | — | 7167351 |
| A4R0305M03U00GMN | 3 | 3.12 | 0.123 | 1.53 | 0.060 | 20.10 | 0.791 | 2.58 | 0.101 | 7097830 | 7167353 |
| A4R0405M04U00GMN | 4 | 4.12 | 0.162 | 2.03 | 0.080 | 20.10 | 0.791 | 3.45 | 0.136 | 7097828 | 7167355 |
| A4R0505M05U00GMN | 5 | 5.12 | 0.202 | 2.53 | 0.099 | 25.15 | 0.990 | 4.15 | 0.163 | 7097829 | 7167357 |
| A4R0605M06U00GMN | 6 | 6.12 | 0.241 | 3.03 | 0.119 | 30.10 | 1.185 | 4.90 | 0.194 | 7097836 | — |
| A4R0805M08U00GMN | 8 | 8.12 | 0.320 | 4.03 | 0.159 | 30.10 | 1.185 | 6.50 | 0.256 | 7097837 | 7167361 |
Пластина для обработки канавок и торцев A4R-U-GUP • Высокая положительная геометрия
Полный радиус, формованная
| Артикул | Размер | W, мм | W, дюйм | RC, мм | RC, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4R0305M03U00GUP | 3 | 3.12 | 0.123 | 1.53 | 0.060 | 20.10 | 0.791 | 2.58 | 0.101 | — | 7167203 |
| A4R0405M04U00GUP | 4 | 4.12 | 0.162 | 2.03 | 0.080 | 20.10 | 0.791 | 3.45 | 0.136 | — | 7167207 |
| A4R0505M05U00GUP | 5 | 5.12 | 0.202 | 2.53 | 0.099 | 25.15 | 0.990 | 4.15 | 0.163 | 7096786 | 7167211 |
| A4R0805M08U00GUP | 8 | 8.13 | 0.320 | 4.03 | 0.159 | 30.10 | 1.185 | 6.52 | 0.257 | — | 7167218 |
Пластина для обработки канавок и торцев A4R-P-GUP • Высокая положительная геометрия
Полный радиус, шлифованная
| Артикул | Размер | W, мм | W, дюйм | RC, мм | RC, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4R0300M03P00GUP | 3 | 3.00 | 0.118 | 1.50 | 0.059 | 20.00 | 0.787 | 2.41 | 0.095 | — | 7167201 |
| A4R0400M04P00GUP | 4 | 4.00 | 0.157 | 2.00 | 0.079 | 20.00 | 0.787 | 3.40 | 0.134 | 7096783 | 7167205 |
| A4R0500M05P00GUP | 5 | 5.00 | 0.197 | 2.50 | 0.098 | 25.00 | 0.984 | 4.00 | 0.157 | — | 7167209 |
| A4R0600M06P00GUP | 6 | 6.00 | 0.236 | 3.00 | 0.118 | 30.00 | 1.181 | 4.75 | 0.187 | — | 7167213 |
