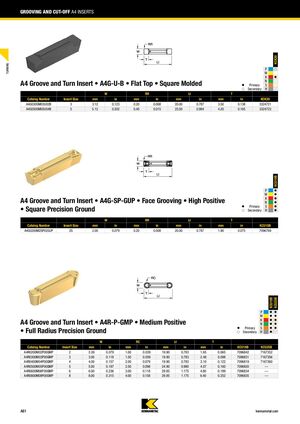

Пластины для обработки канавок и отрезки A4
Обработка
Пластина для обработки канавок и торцев A4G-U-B • Плоская вершина • Квадратная формованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCK20 |
|---|---|---|---|---|---|---|---|---|---|---|
| A4G0305M03U02B | 3 | 3.12 | 0.123 | 0.20 | 0.008 | 20.00 | 0.787 | 3.50 | 0.138 | 3324721 |
| A4G0505M05U04B | 5 | 5.12 | 0.202 | 0.40 | 0.015 | 25.00 | 0.984 | 4.20 | 0.165 | 3324723 |
Пластина для обработки канавок и торцев A4G-SP-GUP • Торцевая канавка • Высокая положительная геометрия
Квадратная шлифованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B |
|---|---|---|---|---|---|---|---|---|---|---|
| A4G0200M2SP02GUP | 2S | 2.00 | 0.079 | 0.20 | 0.008 | 20.00 | 0.787 | 1.90 | 0.075 | 7096769 |
Пластина для обработки канавок и торцев A4R-P-GMP • Средняя положительная геометрия
Полный радиус, шлифованная
| Артикул | Размер | W, мм | W, дюйм | RC, мм | RC, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4R0200M02P00GMP | 2 | 2.00 | 0.079 | 1.00 | 0.039 | 19.90 | 0.783 | 1.65 | 0.065 | 7096842 | 7167352 |
| A4R0300M03P00GMP | 3 | 3.00 | 0.118 | 1.50 | 0.059 | 19.90 | 0.783 | 2.48 | 0.098 | 7096831 | 7167356 |
| A4R0400M04P00GMP | 4 | 4.00 | 0.157 | 2.00 | 0.079 | 19.90 | 0.783 | 3.10 | 0.122 | 7096819 | 7167360 |
| A4R0500M05P00GMP | 5 | 5.00 | 0.197 | 2.50 | 0.098 | 24.90 | 0.980 | 4.07 | 0.160 | 7096820 | — |
| A4R0600M06P00GMP | 6 | 6.00 | 0.236 | 3.00 | 0.118 | 29.85 | 1.175 | 4.80 | 0.189 | 7096834 | — |
| A4R0800M08P00GMP | 8 | 8.00 | 0.315 | 4.00 | 0.158 | 29.85 | 1.175 | 6.40 | 0.252 | 7096835 | — |
