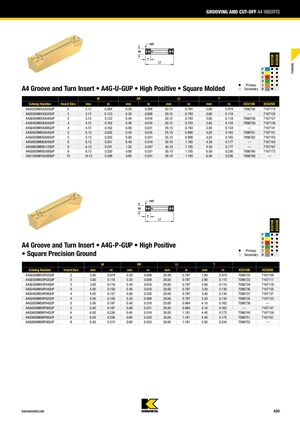

Оптимальный выбор Kennametal 2025 - 2026 - страница 85

Предыдущая страница Следующая страница

Навигация

GROOVING AND CUT-OFF A4 INSERTS KCU10B KCU25B TURNING P 䢇 䢇 M 䢇 䢇 K 䢇 䢇 N 䢇 䢇 䢇 Primary S 䢇 䢇 A4 Groove and Turn Insert • A4G-U-GUP • High Positive • Square Molded 嘷 Secondary H 䢇 W RR LI T Catalog Number Insert Size mm in mm in mm in mm in KCU10B KCU25B A4G0205M02U02GUP 2 2.13 0.084 0.20 0.008 20.15 0.793 2.00 0.079 7096756 7167113 A4G0305M03U02GUP 3 3.13 0.123 0.20 0.008 20.15 0.793 3.00 0.118 — 7167125 A4G0305M03U04GUP 3 3.13 0.123 0.40 0.016 20.15 0.793 3.00 0.118 7096758 7167127 A4G0405M04U04GUP 4 4.12 0.162 0.40 0.016 20.15 0.793 3.40 0.134 7096759 7167139 A4G0405M04U08GUP 4 4.12 0.162 0.80 0.031 20.15 0.793 3.40 0.134 — 7167141 A4G0505M05U04GUP 5 5.13 0.202 0.40 0.016 25.15 0.990 4.20 0.165 7096761 7167151 A4G0505M05U08GUP 5 5.13 0.202 0.80 0.031 25.15 0.990 4.20 0.165 7096762 7167153 A4G0605M06U04GUP 6 6.12 0.241 0.40 0.016 30.10 1.185 4.50 0.177 — 7167163 A4G0605M06U12GUP 6 6.12 0.241 1.20 0.047 30.10 1.185 4.50 0.177 — 7167167 A4G0805M08U08GUP 8 8.13 0.320 0.80 0.031 30.10 1.185 6.00 0.236 7096766 7167173 A4G1005M10U08GUP 10 10.13 0.399 0.80 0.031 30.10 1.185 6.00 0.236 7096768 — KCU10B KCU25B P 䢇 䢇 M 䢇 䢇 K 䢇 䢇 A4 Groove and Turn Insert • A4G-P-GUP • High Positive N 䢇 䢇 䢇 Primary S 䢇 䢇 • Square Precision Ground 嘷 Secondary H 䢇 W RR LI T Catalog Number Insert Size mm in mm in mm in mm in KCU10B KCU25B A4G0200M02P02GUP 2 2.00 0.079 0.20 0.008 20.00 0.787 1.90 0.075 7096732 7167109 A4G0300M03P02GUP 3 3.00 0.118 0.20 0.008 20.00 0.787 2.90 0.115 7096733 7167117 A4G0300M03P04GUP 3 3.00 0.118 0.40 0.016 20.00 0.787 2.90 0.115 7096734 7167119 A4G0400M04P04GUP 4 4.00 0.158 0.40 0.016 20.00 0.787 3.30 0.130 7096736 7167135 A4G0400M04P08GUP 4 4.00 0.157 0.80 0.032 20.00 0.787 3.30 0.130 7096737 7167137 A4G0400M04P02GUP 4 4.00 0.158 0.20 0.008 20.00 0.787 3.30 0.130 7096735 7167133 A4G0500M05P04GUP 5 5.00 0.197 0.40 0.016 25.00 0.984 4.10 0.162 7096738 — A4G0500M05P08GUP 5 5.00 0.197 0.80 0.031 25.00 0.984 4.10 0.163 — 7167147 A4G0600M06P04GUP 6 6.00 0.236 0.40 0.016 30.00 1.181 4.40 0.175 7096740 7167159 A4G0600M06P08GUP 6 6.00 0.236 0.80 0.032 30.00 1.181 4.40 0.175 7096751 7167161 A4G0800M08P08GUP 8 8.00 0.315 0.80 0.032 30.00 1.181 5.90 0.234 7096752 — kennametal.com A80
