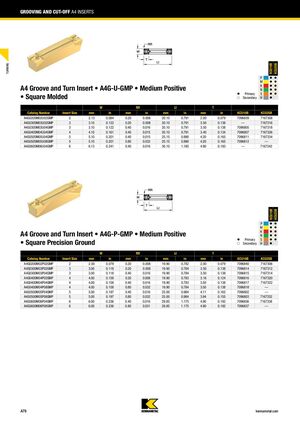

Пластины для обработки канавок и отрезки A4
Обработка
Пластина для обработки канавок и торцев A4G-U-GMP • Средняя положительная геометрия
Квадратная формованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4G0205M02U02GMP | 2 | 2.13 | 0.084 | 0.20 | 0.008 | 20.10 | 0.791 | 2.00 | 0.079 | 7096839 | 7167308 |
| A4G0305M03U02GMP | 3 | 3.10 | 0.122 | 0.20 | 0.008 | 20.10 | 0.791 | 3.50 | 0.138 | — | 7167316 |
| A4G0305M03U04GMP | 3 | 3.10 | 0.122 | 0.40 | 0.016 | 20.10 | 0.791 | 3.50 | 0.138 | 7096805 | 7167318 |
| A4G0405M04U04GMP | 4 | 4.10 | 0.161 | 0.40 | 0.015 | 20.10 | 0.791 | 3.40 | 0.134 | 7096807 | 7167326 |
| A4G0505M05U04GMP | 5 | 5.10 | 0.201 | 0.40 | 0.015 | 25.15 | 0.990 | 4.20 | 0.165 | 7096811 | 7167334 |
| A4G0505M05U08GMP | 5 | 5.10 | 0.201 | 0.80 | 0.032 | 25.15 | 0.990 | 4.20 | 0.165 | 7096812 | — |
| A4G0605M06U04GMP | 6 | 6.13 | 0.241 | 0.40 | 0.016 | 30.10 | 1.185 | 4.90 | 0.193 | — | 7167342 |
Пластина для обработки канавок и торцев A4G-P-GMP • Средняя положительная геометрия
Квадратная шлифованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4G0200M02P02GMP | 2 | 2.00 | 0.079 | 0.20 | 0.008 | 19.90 | 0.782 | 2.00 | 0.079 | 7096840 | 7167306 |
| A4G0300M03P02GMP | 3 | 3.00 | 0.118 | 0.20 | 0.008 | 19.90 | 0.784 | 3.50 | 0.138 | 7096814 | 7167312 |
| A4G0300M03P04GMP | 3 | 3.00 | 0.118 | 0.40 | 0.016 | 19.90 | 0.784 | 3.50 | 0.138 | 7096815 | 7167314 |
| A4G0400M04P02GMP | 4 | 4.00 | 0.158 | 0.20 | 0.008 | 19.90 | 0.783 | 3.16 | 0.124 | 7096816 | 7167320 |
| A4G0400M04P04GMP | 4 | 4.00 | 0.158 | 0.40 | 0.016 | 19.90 | 0.783 | 3.50 | 0.138 | 7096817 | 7167322 |
| A4G0400M04P08GMP | 4 | 4.00 | 0.158 | 0.80 | 0.032 | 19.90 | 0.784 | 3.50 | 0.138 | 7096818 | — |
| A4G0500M05P04GMP | 5 | 5.00 | 0.197 | 0.40 | 0.016 | 25.00 | 0.984 | 4.11 | 0.162 | 7096802 | — |
| A4G0500M05P08GMP | 5 | 5.00 | 0.197 | 0.80 | 0.032 | 25.00 | 0.984 | 3.94 | 0.155 | 7096803 | 7167332 |
| A4G0600M06P04GMP | 6 | 6.00 | 0.236 | 0.40 | 0.016 | 29.85 | 1.175 | 4.90 | 0.192 | 7096836 | 7167338 |
| A4G0600M06P08GMP | 6 | 6.00 | 0.236 | 0.80 | 0.031 | 29.85 | 1.175 | 4.90 | 0.192 | 7096837 | — |
