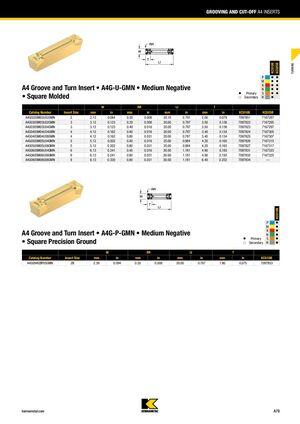

Пластины для обработки канавок и отрезки A4
Обработка
Пластина для обработки канавок и торцев A4G-U-GMN • Средняя отрицательная геометрия
Квадратная формованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B | KCU25B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A4G0205M02U02GMN | 2 | 2.13 | 0.084 | 0.20 | 0.008 | 20.10 | 0.791 | 2.00 | 0.079 | 7097851 | 7167287 |
| A4G0305M03U02GMN | 3 | 3.12 | 0.123 | 0.20 | 0.008 | 20.00 | 0.787 | 3.50 | 0.138 | 7097822 | 7167295 |
| A4G0305M03U04GMN | 3 | 3.12 | 0.123 | 0.40 | 0.016 | 20.00 | 0.787 | 3.50 | 0.138 | 7097823 | 7167297 |
| A4G0405M04U04GMN | 4 | 4.12 | 0.162 | 0.40 | 0.016 | 20.00 | 0.787 | 3.40 | 0.134 | 7097824 | 7167305 |
| A4G0405M04U08GMN | 4 | 4.12 | 0.162 | 0.80 | 0.031 | 20.00 | 0.787 | 3.40 | 0.134 | 7097825 | 7167307 |
| A4G0505M05U04GMN | 5 | 5.12 | 0.202 | 0.40 | 0.016 | 25.00 | 0.984 | 4.20 | 0.165 | 7097826 | 7167315 |
| A4G0505M05U08GMN | 5 | 5.12 | 0.202 | 0.80 | 0.031 | 25.00 | 0.984 | 4.20 | 0.165 | 7097827 | 7167317 |
| A4G0605M06U04GMN | 6 | 6.13 | 0.241 | 0.40 | 0.016 | 30.00 | 1.181 | 4.90 | 0.193 | 7097831 | 7167323 |
| A4G0605M06U08GMN | 6 | 6.13 | 0.241 | 0.80 | 0.031 | 30.00 | 1.181 | 4.90 | 0.193 | 7097832 | 7167325 |
| A4G0805M08U08GMN | 8 | 8.13 | 0.320 | 0.80 | 0.031 | 30.00 | 1.181 | 6.40 | 0.252 | 7097834 | — |
Пластина для обработки канавок и торцев A4G-P-GMN • Средняя отрицательная геометрия
Квадратная шлифованная
| Артикул | Размер | W, мм | W, дюйм | RR, мм | RR, дюйм | LI, мм | LI, дюйм | T, мм | T, дюйм | KCU10B |
|---|---|---|---|---|---|---|---|---|---|---|
| A4G094I2BP05GMN | 2B | 2.39 | 0.094 | 0.20 | 0.008 | 20.00 | 0.787 | 1.90 | 0.075 | 7097853 |
