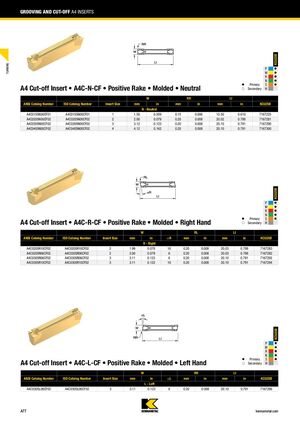

GROOVING AND CUT-OFF A4 INSERTS KCU25B TURNING P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 A4 Cut-off Insert • A4C-N-CF • Positive Rake • Molded • Neutral 嘷 Secondary H W RR LI ANSI Catalog Number ISO Catalog Number Insert Size mm in mm in mm in KCU25B N - Neutral A4C0155N00CF01 A4C0155N00CF01 1 1.50 0.059 0.15 0.006 15.50 0.610 7167225 A4C0205N00CF02 A4C0205N00CF02 2 2.00 0.079 0.20 0.008 20.02 0.788 7167281 A4C0305N00CF02 A4C0305N00CF02 3 3.12 0.123 0.20 0.008 20.10 0.791 7167290 A4C0405N00CF02 A4C0405N00CF02 4 4.12 0.162 0.20 0.008 20.10 0.791 7167300 KCU25B P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 A4 Cut-off Insert • A4C-R-CF • Positive Rake • Molded • Right Hand 嘷 Secondary H W RL LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DR mm in mm in KCU25B R - Right A4C0205R10CF02 A4C0205R10CF02 2 1.99 0.078 10 0.20 0.008 20.03 0.788 7167283 A4C0205R06CF02 A4C0205R06CF02 2 2.00 0.079 6 0.20 0.008 20.03 0.788 7167282 A4C0305R06CF02 A4C0305R06CF02 3 3.11 0.123 6 0.20 0.008 20.10 0.791 7167292 A4C0305R10CF02 A4C0305R10CF02 3 3.11 0.122 10 0.20 0.008 20.10 0.791 7167294 KCU25B P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 A4 Cut-off Insert • A4C-L-CF • Positive Rake • Molded • Left Hand 嘷 Secondary H W RR LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DL mm in mm in KCU25B L - Left A4C0305L06CF02 A4C0305L06CF02 3 3.11 0.123 6 0.20 0.008 20.10 0.791 7167286 A77 kennametal.com
