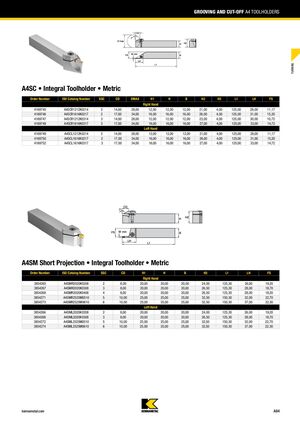

ИНСТРУМЕНТАЛЬНЫЕ ДЕРЖАВКИ A4 ДЛЯ НАРЕЗАНИЯ КАНАВОК И ОТРЕЗКИ
A4SC • Цельная державка • Метрическая
| Номер заказа | Номер каталога ISO | SSC | CD | DMAX | H1 | H | B | H2 | H3 | L1 | LH | FS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое вращение | ||||||||||||
| 4169745 | A4SCR1212K0214 | 2 | 14,00 | 28,00 | 12,00 | 12,00 | 12,00 | 21,00 | 4,00 | 125,00 | 28,00 | 11,17 |
| 4169746 | A4SCR1616K0217 | 2 | 17,00 | 34,00 | 16,00 | 16,00 | 16,00 | 26,00 | 4,00 | 125,00 | 31,00 | 15,20 |
| 4169747 | A4SCR1212K0314 | 3 | 14,00 | 28,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 30,00 | 10,72 |
| 4169748 | A4SCR1616K0317 | 3 | 17,00 | 34,00 | 16,00 | 16,00 | 16,00 | 27,00 | 4,00 | 125,00 | 33,00 | 14,72 |
| Левое вращение | ||||||||||||
| 4169749 | A4SCL1212K0214 | 2 | 14,00 | 28,00 | 12,00 | 12,00 | 12,00 | 21,00 | 4,00 | 125,00 | 28,00 | 11,17 |
| 4169750 | A4SCL1616K0217 | 2 | 17,00 | 34,00 | 16,00 | 16,00 | 16,00 | 26,00 | 4,00 | 125,00 | 31,00 | 15,20 |
| 4169752 | A4SCL1616K0317 | 3 | 17,00 | 34,00 | 16,00 | 16,00 | 16,00 | 27,00 | 4,00 | 125,00 | 33,00 | 14,72 |
A4SM Сокращённый вылет • Цельная державка • Метрическая
| Номер заказа | Номер каталога ISO | SSC | CD | H1 | H | B | H2 | L1 | LH | FS |
|---|---|---|---|---|---|---|---|---|---|---|
| Правое вращение | ||||||||||
| 3854265 | A4SMR2020K0208 | 2 | 8,00 | 20,00 | 20,00 | 20,00 | 24,00 | 125,30 | 26,00 | 19,20 |
| 3854267 | A4SMR2020K0308 | 3 | 8,00 | 20,00 | 20,00 | 20,00 | 26,50 | 125,30 | 28,00 | 18,70 |
| 3854269 | A4SMR2020K0408 | 4 | 8,00 | 20,00 | 20,00 | 20,00 | 26,50 | 125,30 | 28,00 | 18,20 |
| 3854271 | A4SMR2525M0510 | 5 | 10,00 | 25,00 | 25,00 | 25,00 | 32,50 | 150,30 | 32,00 | 22,70 |
| 3854273 | A4SMR2525M0610 | 6 | 10,00 | 25,00 | 25,00 | 25,00 | 32,50 | 150,30 | 37,00 | 22,30 |
| Левое вращение | ||||||||||
| 3854266 | A4SML2020K0208 | 2 | 8,00 | 20,00 | 20,00 | 20,00 | 24,00 | 125,30 | 26,00 | 19,20 |
| 3854268 | A4SML2020K0308 | 3 | 8,00 | 20,00 | 20,00 | 20,00 | 26,50 | 125,30 | 28,00 | 18,70 |
| 3854272 | A4SML2525M0510 | 5 | 10,00 | 25,00 | 25,00 | 25,00 | 32,50 | 150,30 | 32,00 | 22,70 |
| 3854274 | A4SML2525M0610 | 6 | 10,00 | 25,00 | 25,00 | 25,00 | 32,50 | 150,30 | 37,00 | 22,30 |
