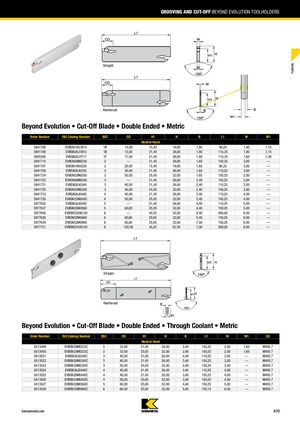

Торцевание и отрезка • оснащение BEYOND EVOLUTION
Прямой профиль • усиленная
Beyond Evolution • режущий блок • двухсторонний • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | H1 | H | B | L1 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|
| Нейтральное исполнение | |||||||||
| 5941706 | EVBSN19G1B14 | 1B | 14,00 | 15,45 | 19,00 | 1,80 | 90,25 | 1,40 | 1,15 |
| 5941708 | EVBSN26J1B15 | 1B | 15,00 | 21,45 | 26,00 | 1,80 | 110,25 | 1,40 | 1,15 |
| 5955392 | EVBSN26J1F17 | 1F | 17,00 | 21,45 | 26,00 | 1,80 | 110,25 | 1,60 | 1,30 |
| 5941710 | EVBSN26M0230 | 2 | — | 21,45 | 26,00 | 1,65 | 150,25 | 2,00 | — |
| 5941707 | EVBSN19G0220 | 2 | 20,00 | 15,45 | 19,00 | 1,65 | 90,25 | 2,00 | — |
| 5941709 | EVBSN26J0230 | 2 | 30,00 | 21,45 | 26,00 | 1,65 | 110,25 | 2,00 | — |
| 5941724 | EVBSN32M0250 | 2 | 50,00 | 25,05 | 32,00 | 1,65 | 150,25 | 2,00 | — |
| 5941722 | EVBSN26M0340 | 3 | — | 21,45 | 26,00 | 2,40 | 150,25 | 3,00 | — |
| 5941721 | EVBSN26J0340 | 3 | 40,00 | 21,45 | 26,00 | 2,40 | 110,25 | 3,00 | — |
| 5941725 | EVBSN32M0350 | 3 | 50,00 | 25,05 | 32,00 | 2,40 | 150,25 | 3,00 | — |
| 5941723 | EVBSN26J0440 | 4 | 40,00 | 21,45 | 26,00 | 3,40 | 110,25 | 4,00 | — |
| 5941726 | EVBSN32M0450 | 4 | 50,00 | 25,05 | 32,00 | 3,40 | 150,25 | 4,00 | — |
| 5977635 | EVBSN26J0540 | 5 | — | 21,45 | 26,00 | 4,40 | 110,25 | 5,00 | — |
| 5977637 | EVBSN32M0560 | 5 | 60,00 | 25,05 | 32,00 | 4,40 | 150,25 | 5,00 | — |
| 5977640 | EVBSN52X06120 | 6 | — | 45,25 | 52,50 | 5,40 | 260,00 | 6,00 | — |
| 5977638 | EVBSN32M0660 | 6 | 60,00 | 25,05 | 32,00 | 5,40 | 150,25 | 6,00 | — |
| 5977639 | EVBSN32M0860 | 8 | 60,00 | 25,05 | 32,00 | 7,00 | 150,25 | 8,00 | — |
| 5977721 | EVBSN52X08120 | 8 | 120,00 | 45,25 | 52,50 | 7,00 | 260,00 | 8,00 | — |
Прямой профиль • усиленная
Beyond Evolution • режущий блок • двухсторонний • охлаждение через инструмент • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | H1 | H | B | L1 | W | W1 | CS |
|---|---|---|---|---|---|---|---|---|---|---|
| Нейтральное исполнение | ||||||||||
| 6513449 | EVBSN26M0233C | 2 | 33,00 | 21,45 | 26,00 | 2,40 | 150,25 | 2,00 | 1,65 | M4X0.7 |
| 6513450 | EVBSN32M0233C | 2 | 33,00 | 25,05 | 32,00 | 2,40 | 150,25 | 2,00 | 1,65 | M4X0.7 |
| 6513521 | EVBSN26J0340C | 3 | 40,00 | 21,45 | 26,00 | 2,40 | 110,25 | 3,00 | — | M4X0.7 |
| 6513522 | EVBSN26M0340C | 3 | 40,00 | 21,45 | 26,00 | 2,40 | 150,25 | 3,00 | — | M4X0.7 |
| 6513523 | EVBSN32M0350C | 3 | 50,00 | 25,05 | 32,00 | 2,40 | 150,25 | 3,00 | — | M4X0.7 |
| 6513524 | EVBSN26J0440C | 4 | 40,00 | 21,45 | 26,00 | 3,40 | 110,25 | 4,00 | — | M4X0.7 |
| 6513525 | EVBSN26M0440C | 4 | 40,00 | 21,45 | 26,00 | 3,40 | 150,25 | 4,00 | — | M4X0.7 |
| 6513526 | EVBSN32M0450C | 4 | 50,00 | 25,05 | 32,00 | 3,40 | 150,25 | 4,00 | — | M4X0.7 |
| 6513527 | EVBSN32M0560C | 5 | 60,00 | 25,05 | 32,00 | 4,40 | 150,25 | 5,00 | — | M4X0.7 |
| 6513529 | EVBSN32M0660C | 6 | 60,00 | 25,05 | 32,00 | 5,40 | 150,15 | 6,00 | — | M4X0.7 |
