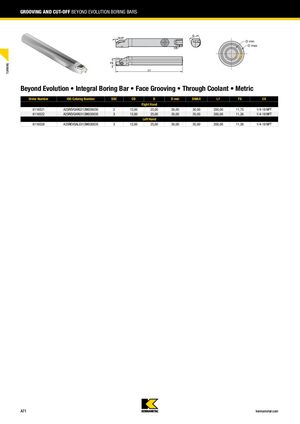

Торцевание и отрезка • оснащение BEYOND EVOLUTION
Beyond Evolution • встроенный расточный стержень • обработка торцевых канавок • охлаждение через инструмент • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | D | D min | DMAX | L1 | FS | CS |
|---|---|---|---|---|---|---|---|---|---|
| Правое исполнение | |||||||||
| 6116521 | A25REVSAR0212M026030 | 2 | 12,00 | 25,00 | 26,00 | 30,00 | 200,00 | 11,75 | 1/4-18 NPT |
| 6116522 | A25REVSAR0312M030035 | 3 | 12,00 | 25,00 | 30,00 | 35,00 | 200,00 | 11,26 | 1/4-18 NPT |
| Левое исполнение | |||||||||
| 6116528 | A25REVSAL0312M030035 | 3 | 12,00 | 25,00 | 30,00 | 35,00 | 200,00 | 11,26 | 1/4-18 NPT |
