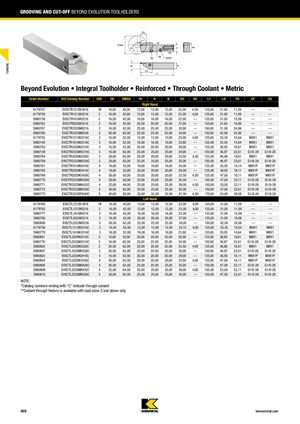

Торцевание и отрезка • оснащение BEYOND EVOLUTION
Beyond Evolution • встроенная державка • усиленная • охлаждение через инструмент • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | DMAX | H1 | H | B | H2 | H3 | L1 | LH | FS | CF | CS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое исполнение | ||||||||||||||
| 6179757 | EVSCTR1212K1B16 | 1B | 16,00 | 42,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 31,00 | 11,29 | — | — |
| 6179759 | EVSCTR1212K0216 | 2 | 16,00 | 42,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 31,00 | 11,09 | — | — |
| 5980139 | EVSCTR1616K0216 | 2 | 16,00 | 42,00 | 16,00 | 16,00 | 16,00 | 23,00 | — | 125,00 | 31,00 | 15,09 | — | — |
| 5980762 | EVSCTR2020K0216 | 2 | 16,00 | 42,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 31,00 | 19,06 | — | — |
| 5980767 | EVSCTR2525M0216 | 2 | 16,00 | 42,00 | 25,00 | 25,00 | 25,00 | 32,00 | — | 150,00 | 31,00 | 24,06 | — | — |
| 5980768 | EVSCTR2525M0226 | 2 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 42,00 | 24,06 | — | — |
| 6179755 | EVSCTR1212K0316C | 3 | 16,00 | 52,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 33,35 | 10,64 | M8X1 | M8X1 |
| 5980140 | EVSCTR1616K0316C | 3 | 16,00 | 52,00 | 16,00 | 16,00 | 16,00 | 23,80 | — | 125,00 | 35,05 | 14,64 | M8X1 | M8X1 |
| 5980763 | EVSCTR2020K0316C | 3 | 16,00 | 52,00 | 20,00 | 20,00 | 20,00 | 29,00 | — | 125,00 | 36,85 | 18,61 | M8X1 | M8X1 |
| 5980138 | EVSCTR2525M0316C | 3 | 16,00 | 62,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 36,87 | 23,61 | G1/8-28 | G1/8-28 |
| 5980764 | EVSCTR2020K0326C | 3 | 26,00 | 62,00 | 20,00 | 20,00 | 20,00 | 33,50 | 4,00 | 125,00 | 46,86 | 18,61 | M8X1 | M8X1 |
| 5980769 | EVSCTR2525M0326C | 3 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 46,87 | 23,61 | G1/8-28 | G1/8-28 |
| 5980761 | EVSCTR1616K0416C | 4 | 16,00 | 52,00 | 16,00 | 16,00 | 16,00 | 24,00 | — | 125,00 | 35,05 | 14,14 | M8X1P | M8X1P |
| 5980765 | EVSCTR2020K0416C | 4 | 16,00 | 52,00 | 20,00 | 20,00 | 20,00 | 29,00 | — | 125,00 | 36,85 | 18,11 | M8X1P | M8X1P |
| 5980766 | EVSCTR2020K0426C | 4 | 26,00 | 62,00 | 20,00 | 20,00 | 20,00 | 33,50 | 4,00 | 125,00 | 47,00 | 18,11 | M8X1P | M8X1P |
| 5980770 | EVSCTR2525M0426C | 4 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 47,00 | 23,11 | G1/8-28 | G1/8-28 |
| 5980771 | EVSCTR2525M0432C | 4 | 32,00 | 64,00 | 25,00 | 25,00 | 25,00 | 39,00 | 4,00 | 150,00 | 53,00 | 23,11 | G1/8-28 | G1/8-28 |
| 5980772 | EVSCTR2525M0526C | 5 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 47,00 | 22,61 | G1/8-28 | G1/8-28 |
| 5980775 | EVSCTR3232P0540C | 5 | 40,00 | 82,00 | 32,00 | 32,00 | 32,00 | 47,00 | 4,00 | 170,00 | 63,00 | 29,58 | G1/8-28 | G1/8-28 |
| Левое исполнение | ||||||||||||||
| 6179760 | EVSCTL1212K1B16 | 1B | 16,00 | 42,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 31,00 | 11,29 | — | — |
| 6179762 | EVSCTL1212K0216 | 2 | 16,00 | 42,00 | 12,00 | 12,00 | 12,00 | 23,00 | 4,00 | 125,00 | 31,00 | 11,09 | — | — |
| 5980777 | EVSCTL1616K0216 | 2 | 16,00 | 42,00 | 16,00 | 16,00 | 16,00 | 23,00 | — | 125,00 | 31,00 | 15,09 | — | — |
| 5980780 | EVSCTL2020K0216 | 2 | 16,00 | 42,00 | 20,00 | 20,00 | 20,00 | 27,00 | — | 125,00 | 31,00 | 19,06 | — | — |
| 5980806 | EVSCTL2525M0226 | 2 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 42,00 | 24,06 | — | — |
| 6179756 | EVSCTL1212K0316C | 3 | 16,00 | 52,00 | 12,00 | 12,00 | 12,00 | 23,15 | 4,00 | 125,00 | 33,35 | 10,64 | M8X1 | M8X1 |
| 5980778 | EVSCTL1616K0316C | 3 | 16,00 | 52,00 | 16,00 | 16,00 | 16,00 | 23,80 | — | 125,00 | 35,05 | 14,64 | M8X1 | M8X1 |
| 5980801 | EVSCTL2020K0316C | 3 | 16,00 | 52,00 | 20,00 | 20,00 | 20,00 | 29,00 | — | 125,00 | 36,85 | 18,61 | M8X1 | M8X1 |
| 5980776 | EVSCTL2525M0316C | 3 | 16,00 | 62,00 | 25,00 | 25,00 | 25,00 | 34,00 | — | 150,00 | 36,87 | 23,61 | G1/8-28 | G1/8-28 |
| 5980802 | EVSCTL2020K0326C | 3 | 26,00 | 62,00 | 20,00 | 20,00 | 20,00 | 33,50 | 4,00 | 125,00 | 46,86 | 18,61 | M8X1 | M8X1 |
| 5980807 | EVSCTL2525M0326C | 3 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 46,87 | 23,61 | G1/8-28 | G1/8-28 |
| 5980803 | EVSCTL2020K0416C | 4 | 16,00 | 52,00 | 20,00 | 20,00 | 20,00 | 29,00 | — | 125,00 | 36,85 | 18,11 | M8X1P | M8X1P |
| 5980804 | EVSCTL2020K0426C | 4 | 26,00 | 62,00 | 20,00 | 20,00 | 20,00 | 33,50 | 4,00 | 125,00 | 47,00 | 18,11 | M8X1P | M8X1P |
| 5980808 | EVSCTL2525M0426C | 4 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 47,00 | 23,11 | G1/8-28 | G1/8-28 |
| 5980809 | EVSCTL2525M0432C | 4 | 32,00 | 64,00 | 25,00 | 25,00 | 25,00 | 39,00 | 4,00 | 150,00 | 53,00 | 23,11 | G1/8-28 | G1/8-28 |
| 5980810 | EVSCTL2525M0526C | 5 | 26,00 | 62,00 | 25,00 | 25,00 | 25,00 | 35,00 | — | 150,00 | 47,00 | 22,61 | G1/8-28 | G1/8-28 |
Примечание:
- Каталожные номера, заканчивающиеся на "C", указывают на охлаждение через инструмент
- Функция охлаждения через инструмент доступна только для размеров сиденья 3 и выше
