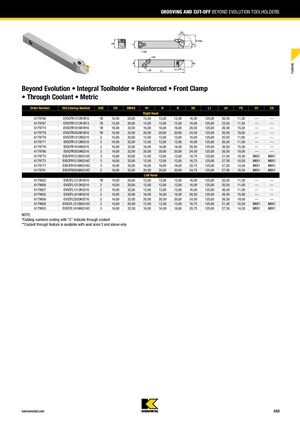

Торцевание и отрезка • оснащение BEYOND EVOLUTION
Beyond Evolution • встроенная державка • усиленная • передний зажим • охлаждение через инструмент • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | DMAX | H1 | H | B | H2 | L1 | LH | FS | CF | CS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое исполнение | |||||||||||||
| 6179766 | EVSCFR1212K1B10 | 1B | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 20,50 | 11,30 | — | — |
| 6179767 | EVSCFR1212K1B13 | 1B | 13,00 | 26,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 23,50 | 11,30 | — | — |
| 6179774 | EVSCFR1616K1B16 | 1B | 16,00 | 32,00 | 16,00 | 16,00 | 16,00 | 20,50 | 125,00 | 26,50 | 15,30 | — | — |
| 6179778 | EVSCFR2020K1B16 | 1B | 16,00 | 32,00 | 20,00 | 20,00 | 20,00 | 24,50 | 125,00 | 26,50 | 19,30 | — | — |
| 6179770 | EVSCFR1212K0210 | 2 | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 20,50 | 11,00 | — | — |
| 6179771 | EVSCFR1212K0216 | 2 | 16,00 | 32,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 26,50 | 11,00 | — | — |
| 6179776 | EVSCFR1616K0216 | 2 | 16,00 | 32,00 | 16,00 | 16,00 | 16,00 | 20,50 | 125,00 | 26,50 | 15,00 | — | — |
| 6179780 | EVSCFR2020K0216 | 2 | 16,00 | 32,00 | 20,00 | 20,00 | 20,00 | 24,50 | 125,00 | 26,50 | 19,00 | — | — |
| 6179772 | EVSCFR1212K0310C | 3 | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,75 | 125,00 | 21,50 | 10,50 | M8X1 | M8X1 |
| 6179773 | EVSCFR1212K0316C | 3 | 16,00 | 32,00 | 12,00 | 12,00 | 12,00 | 16,75 | 125,00 | 27,50 | 10,50 | M8X1 | M8X1 |
| 6179777 | EVSCFR1616K0316C | 3 | 16,00 | 32,00 | 16,00 | 16,00 | 16,00 | 20,75 | 125,00 | 27,50 | 14,50 | M8X1 | M8X1 |
| 6179781 | EVSCFR2020K0316C | 3 | 16,00 | 32,00 | 20,00 | 20,00 | 20,00 | 24,75 | 125,00 | 27,50 | 18,50 | M8X1 | M8X1 |
| Левое исполнение | |||||||||||||
| 6179922 | EVSCFL1212K1B10 | 1B | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 20,50 | 11,30 | — | — |
| 6179926 | EVSCFL1212K0210 | 2 | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 20,50 | 11,00 | — | — |
| 6179927 | EVSCFL1212K0216 | 2 | 16,00 | 32,00 | 12,00 | 12,00 | 12,00 | 16,00 | 125,00 | 26,50 | 11,00 | — | — |
| 6179932 | EVSCFL1616K0216 | 2 | 16,00 | 32,00 | 16,00 | 16,00 | 16,00 | 20,50 | 125,00 | 26,50 | 15,00 | — | — |
| 6179936 | EVSCFL2020K0216 | 2 | 16,00 | 32,00 | 20,00 | 20,00 | 20,00 | 24,50 | 125,00 | 26,50 | 19,00 | — | — |
| 6179928 | EVSCFL1212K0310C | 3 | 10,00 | 20,00 | 12,00 | 12,00 | 12,00 | 16,75 | 125,00 | 21,50 | 10,50 | M8X1 | M8X1 |
| 6179933 | EVSCFL1616K0316C | 3 | 16,00 | 32,00 | 16,00 | 16,00 | 16,00 | 20,75 | 125,00 | 27,50 | 14,50 | M8X1 | M8X1 |
Примечание:
- Каталожные номера, заканчивающиеся на "C", указывают на охлаждение через инструмент
- Функция охлаждения через инструмент доступна только для размеров сиденья 3 и выше
