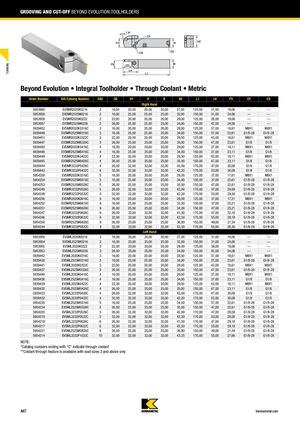

Торцевание и отрезка • оснащение BEYOND EVOLUTION
Beyond Evolution • встроенная державка • охлаждение через инструмент • метрическая система
| Заказной номер | Номер каталога ISO | SSC | CD | H1 | H | B | H2 | L1 | LH | FS | CF | CS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое исполнение | ||||||||||||
| 5953960 | EVSMR2020K0216 | 2 | 16,00 | 20,00 | 20,00 | 20,00 | 27,00 | 125,00 | 31,00 | 19,06 | — | — |
| 5953958 | EVSMR2525M0216 | 2 | 16,00 | 25,00 | 25,00 | 25,00 | 32,00 | 150,00 | 31,00 | 24,06 | — | — |
| 5953959 | EVSMR2020K0222 | 2 | 22,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 38,00 | 19,06 | — | — |
| 5953957 | EVSMR2525M0226 | 2 | 26,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 42,00 | 24,06 | — | — |
| 5939452 | EVSMR2020K0316C | 3 | 16,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 37,00 | 18,61 | M8X1 | M8X1 |
| 5939448 | EVSMR2525M0316C | 3 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 23,61 | G1/8-28 | G1/8-28 |
| 5939451 | EVSMR2020K0322C | 3 | 22,00 | 20,00 | 20,00 | 20,00 | 29,50 | 125,00 | 43,00 | 18,61 | M8X1 | M8X1 |
| 5939447 | EVSMR2525M0326C | 3 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 23,61 | G1/8 | G1/8 |
| 5939450 | EVSMR2020K0416C | 4 | 16,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 37,00 | 18,11 | M8X1 | M8X1 |
| 5939446 | EVSMR2525M0416C | 4 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 23,11 | G1/8 | G1/8 |
| 5939449 | EVSMR2020K0422C | 4 | 22,00 | 20,00 | 20,00 | 20,00 | 29,50 | 125,00 | 43,00 | 18,11 | M8X1 | M8X1 |
| 5939445 | EVSMR2525M0426C | 4 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 23,11 | G1/8 | G1/8 |
| 5939444 | EVSMR3232P0426C | 4 | 26,00 | 32,00 | 32,00 | 32,00 | 42,00 | 170,00 | 47,00 | 30,08 | G1/8 | G1/8 |
| 5939443 | EVSMR3232P0432C | 4 | 32,00 | 32,00 | 32,00 | 32,00 | 42,20 | 170,00 | 53,00 | 30,08 | G1/8 | G1/8 |
| 5954258 | EVSMR2020K0516C | 5 | 16,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 37,00 | 17,61 | M8X1 | M8X1 |
| 5954254 | EVSMR2525M0516C | 5 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 22,61 | G1/8-28 | G1/8-28 |
| 5954253 | EVSMR2525M0526C | 5 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 22,61 | G1/8-28 | G1/8-28 |
| 5954249 | EVSMR3232P0526C | 5 | 26,00 | 32,00 | 32,00 | 32,00 | 42,00 | 170,00 | 47,00 | 29,58 | G1/8-28 | G1/8-28 |
| 5954248 | EVSMR3232P0532C | 5 | 32,00 | 32,00 | 32,00 | 32,00 | 42,20 | 170,00 | 53,00 | 29,58 | G1/8-28 | G1/8-28 |
| 5954256 | EVSMR2020K0616C | 6 | 16,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 37,00 | 17,21 | M8X1 | M8X1 |
| 5954252 | EVSMR2525M0616C | 6 | 16,00 | 25,00 | 25,00 | 25,00 | 33,50 | 150,00 | 37,00 | 25,21 | G1/8-28 | G1/8-28 |
| 5954251 | EVSMR2525M0626C | 6 | 26,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 47,00 | 25,21 | G1/8-28 | G1/8-28 |
| 5954247 | EVSMR3232P0626C | 6 | 26,00 | 32,00 | 32,00 | 32,00 | 41,50 | 170,00 | 47,00 | 32,18 | G1/8-28 | G1/8-28 |
| 5954246 | EVSMR3232P0632C | 6 | 32,00 | 32,00 | 32,00 | 32,00 | 42,50 | 170,00 | 55,00 | 29,18 | G1/8-28 | G1/8-28 |
| 5954250 | EVSMR2525M0826C | 8 | 26,00 | 25,00 | 25,00 | 25,00 | 36,80 | 150,00 | 49,00 | 21,34 | G1/8-28 | G1/8-28 |
| 5954244 | EVSMR3232P0832C | 8 | 32,00 | 32,00 | 32,00 | 32,00 | 42,50 | 170,00 | 55,00 | 28,30 | G1/8-28 | G1/8-28 |
| Левое исполнение | ||||||||||||
| 5953956 | EVSML2020K0216 | 2 | 16,00 | 20,00 | 20,00 | 20,00 | 27,00 | 125,00 | 31,00 | 19,06 | — | — |
| 5953954 | EVSML2525M0216 | 2 | 16,00 | 25,00 | 25,00 | 25,00 | 32,00 | 150,00 | 31,00 | 24,06 | — | — |
| 5953955 | EVSML2020K0222 | 2 | 22,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 38,00 | 19,06 | — | — |
| 5953953 | EVSML2525M0226 | 2 | 26,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 42,00 | 24,06 | — | — |
| 5939442 | EVSML2020K0316C | 3 | 16,00 | 20,00 | 20,00 | 20,00 | 28,50 | 125,00 | 37,00 | 18,61 | M8X1 | M8X1 |
| 5939438 | EVSML2525M0316C | 3 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 23,61 | G1/8-28 | G1/8-28 |
| 5939441 | EVSML2020K0322C | 3 | 22,00 | 20,00 | 20,00 | 20,00 | 29,50 | 125,00 | 43,00 | 18,61 | M8X1 | M8X1 |
| 5939437 | EVSML2525M0326C | 3 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 23,61 | G1/8-28 | G1/8-28 |
| 5939440 | EVSML2020K0416C | 4 | 16,00 | 20,00 | 20,00 | 20,00 | 29,00 | 125,00 | 37,00 | 18,11 | M8X1 | M8X1 |
| 5939436 | EVSML2525M0416C | 4 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 23,11 | G1/8 | G1/8 |
| 5939439 | EVSML2020K0422C | 4 | 22,00 | 20,00 | 20,00 | 20,00 | 29,50 | 125,00 | 43,00 | 18,11 | M8X1 | M8X1 |
| 5939435 | EVSML2525M0426C | 4 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 23,11 | G1/8 | G1/8 |
| 5939433 | EVSML3232P0426C | 4 | 26,00 | 32,00 | 32,00 | 32,00 | 42,00 | 170,00 | 47,00 | 30,08 | G1/8 | G1/8 |
| 5939432 | EVSML3232P0432C | 4 | 32,00 | 32,00 | 32,00 | 32,00 | 42,20 | 170,00 | 53,00 | 30,08 | G1/8 | G1/8 |
| 5954235 | EVSML2525M0516C | 5 | 16,00 | 25,00 | 25,00 | 25,00 | 34,00 | 150,00 | 37,00 | 22,61 | G1/8-28 | G1/8-28 |
| 5954234 | EVSML2525M0526C | 5 | 26,00 | 25,00 | 25,00 | 25,00 | 35,00 | 150,00 | 47,00 | 22,61 | G1/8-28 | G1/8-28 |
| 5954220 | EVSML3232P0526C | 5 | 26,00 | 32,00 | 32,00 | 32,00 | 42,00 | 170,00 | 47,00 | 29,58 | G1/8-28 | G1/8-28 |
| 5954219 | EVSML3232P0532C | 5 | 32,00 | 32,00 | 32,00 | 32,00 | 42,20 | 170,00 | 53,00 | 29,58 | G1/8-28 | G1/8-28 |
| 5954218 | EVSML3232P0626C | 6 | 26,00 | 32,00 | 32,00 | 32,00 | 41,50 | 170,00 | 47,00 | 29,18 | G1/8-28 | G1/8-28 |
| 5954217 | EVSML3232P0632C | 6 | 32,00 | 32,00 | 32,00 | 32,00 | 42,50 | 170,00 | 55,00 | 29,18 | G1/8-28 | G1/8-28 |
| 5954231 | EVSML2525M0826C | 8 | 26,00 | 25,00 | 25,00 | 25,00 | 36,80 | 150,00 | 49,00 | 21,34 | G1/8-28 | G1/8-28 |
| 5954214 | EVSML3232P1032C | 10 | 32,00 | 32,00 | 32,00 | 32,00 | 43,25 | 170,00 | 55,00 | 27,66 | G1/8-28 | G1/8-28 |
Примечание:
- Каталожные номера, заканчивающиеся на "C", указывают на охлаждение через инструмент
- Функция охлаждения через инструмент доступна только для размеров сиденья 3 и выше
