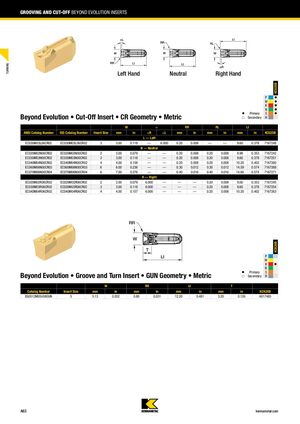

GROOVING AND CUT-OFF BEYOND EVOLUTION INSERTS TURNING Left Hand Neutral Right Hand KCU25B P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 Beyond Evolution • Cut-Off Insert • CR Geometry • Metric 嘷 Secondary H W D RR RL LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DR DL mm in mm in mm in KCU25B L — Left EC030M03L06CR02 EC030M03L06CR02 3 3.00 0.118 — 6.000 0.20 0.008 — — 9.60 0.378 7167248 N — Neutral EC020M02N00CR02 EC020M02N00CR02 2 2.00 0.079 — — 0.20 0.008 0.20 0.008 8.98 0.353 7167242 EC030M03N00CR02 EC030M03N00CR02 3 3.00 0.118 — — 0.20 0.008 0.20 0.008 9.60 0.378 7167251 EC040M04N00CR02 EC040M04N00CR02 4 4.00 0.158 — — 0.20 0.008 0.20 0.008 10.20 0.402 7167260 EC060M06N00CR03 EC060M06N00CR03 6 6.00 0.236 — — 0.30 0.012 0.30 0.012 14.59 0.574 7167268 EC070M06N00CR04 EC070M06N00CR04 6 7.00 0.276 — — 0.40 0.016 0.40 0.016 14.60 0.574 7167271 R — Right EC020M02R06CR02 EC020M02R06CR02 2 2.00 0.079 6.000 — — — 0.20 0.008 9.00 0.353 7167245 EC030M03R06CR02 EC030M03R06CR02 3 3.00 0.118 6.000 — — — 0.20 0.008 9.60 0.378 7167254 EC040M04R06CR02 EC040M04R06CR02 4 4.00 0.157 6.000 — — — 0.20 0.008 10.20 0.402 7167263 KCK20B P 嘷 M K 䢇 N 䢇 Primary S Beyond Evolution • Groove and Turn Insert • GUN Geometry • Metric 嘷 Secondary H W RR LI T Catalog Number Insert Size mm in mm in mm in mm in KCK20B EG0512M05U08GUN 5 5.13 0.202 0.80 0.031 12.20 0.481 3.20 0.126 6017485 A63 kennametal.com
