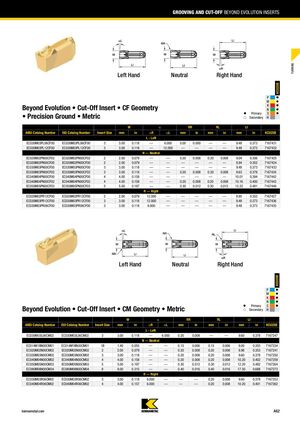

Оптимальный выбор Kennametal 2025 - 2026 - страница 67

Предыдущая страница Следующая страница

Навигация

GROOVING AND CUT-OFF BEYOND EVOLUTION INSERTS TURNING Left Hand Neutral Right Hand KCU25B P 䢇 M 䢇 K 䢇 Beyond Evolution • Cut-Off Insert • CF Geometry N 䢇 䢇 Primary S 䢇 • Precision Ground • Metric 嘷 Secondary H W D RR RL LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DR DL mm in mm in mm in KCU25B L - Left EC030M03PL06CF00 EC030M03PL06CF00 3 3.00 0.118 — 6.000 0.00 0.000 — — 9.48 0.373 7167431 EC030M03PL12CF00 EC030M03PL12CF00 3 3.00 0.118 — 12.000 — — — — 9.48 0.373 7167432 N — Neutral EC020M02PN00CF02 EC020M02PN00CF02 2 2.00 0.079 — — 0.20 0.008 0.20 0.008 9.04 0.356 7167425 EC020M02PN00CF00 EC020M02PN00CF00 2 2.00 0.079 — — — — — — 8.94 0.352 7167424 EC030M03PN00CF00 EC030M03PN00CF00 3 3.00 0.118 — — — — — — 9.48 0.373 7167433 EC030M03PN00CF02 EC030M03PN00CF02 3 3.00 0.118 — — 0.20 0.008 0.20 0.008 9.63 0.379 7167434 EC040M04PN00CF00 EC040M04PN00CF00 4 4.00 0.158 — — — — — — 10.01 0.394 7167442 EC040M04PN00CF02 EC040M04PN00CF02 4 4.00 0.158 — — 0.20 0.008 0.20 0.008 10.16 0.400 7167443 EC050M05PN00CF03 EC050M05PN00CF03 5 5.00 0.197 — — 0.30 0.012 0.30 0.012 12.22 0.481 7167449 R — Right EC020M02PR12CF00 EC020M02PR12CF00 2 2.00 0.079 12.000 — — — — — 8.95 0.352 7167427 EC030M03PR12CF00 EC030M03PR12CF00 3 3.00 0.118 12.000 — — — — — 9.48 0.373 7167436 EC030M03PR06CF00 EC030M03PR06CF00 3 3.00 0.118 6.000 — — — — — 9.48 0.373 7167435 Left Hand Neutral Right Hand KCU25B P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 Beyond Evolution • Cut-Off Insert • CM Geometry • Metric 嘷 Secondary H W D RR RL LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DR DL mm in mm in mm in KCU25B L - Left EC030M03L06CM02 EC030M03L06CM02 3 3.00 0.118 — 6.000 0.20 0.008 — — 9.60 0.378 7167247 N — Neutral EC014M1BN00CM01 EC014M1BN00CM01 1B 1.40 0.055 — — 0.15 0.006 0.15 0.006 9.00 0.355 7167234 EC020M02N00CM02 EC020M02N00CM02 2 2.00 0.079 — — 0.20 0.008 0.20 0.008 8.98 0.353 7167241 EC030M03N00CM02 EC030M03N00CM02 3 3.00 0.118 — — 0.20 0.008 0.20 0.008 9.60 0.378 7167250 EC040M04N00CM02 EC040M04N00CM02 4 4.00 0.158 — — 0.20 0.008 0.20 0.008 10.20 0.402 7167259 EC050M05N00CM03 EC050M05N00CM03 5 5.00 0.197 — — 0.30 0.012 0.30 0.012 12.20 0.482 7167264 EC080M08N00CM04 EC080M08N00CM04 8 8.00 0.315 — — 0.40 0.016 0.40 0.016 17.50 0.688 7167273 R — Right EC030M03R06CM02 EC030M03R06CM02 3 3.00 0.118 6.000 — — — 0.20 0.008 9.60 0.378 7167253 EC040M04R06CM02 EC040M04R06CM02 4 4.00 0.157 6.000 — — — 0.20 0.008 10.20 0.401 7167262 kennametal.com A62
