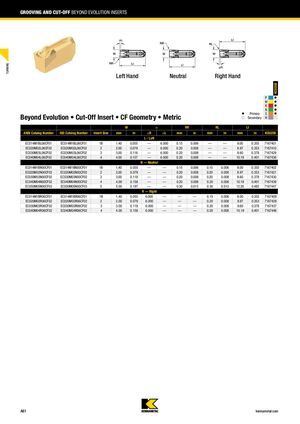

GROOVING AND CUT-OFF BEYOND EVOLUTION INSERTS TURNING Left Hand Neutral Right Hand KCU25B P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 Beyond Evolution • Cut-Off Insert • CF Geometry • Metric 嘷 Secondary H W D RR RL LI ANSI Catalog Number ISO Catalog Number Insert Size mm in DR DL mm in mm in mm in KCU25B L - Left EC014M1BL06CF01 EC014M1BL06CF01 1B 1.40 0.055 — 6.000 0.15 0.006 — — 9.00 0.355 7167401 EC020M02L06CF02 EC020M02L06CF02 2 2.00 0.079 — 6.000 0.20 0.008 — — 8.97 0.353 7167410 EC030M03L06CF02 EC030M03L06CF02 3 3.00 0.118 — 6.000 0.20 0.008 — — 9.60 0.378 7167429 EC040M04L06CF02 EC040M04L06CF02 4 4.00 0.157 — 6.000 0.20 0.008 — — 10.19 0.401 7167438 N — Neutral EC014M1BN00CF01 EC014M1BN00CF01 1B 1.40 0.055 — — 0.15 0.006 0.15 0.006 9.00 0.355 7167402 EC020M02N00CF02 EC020M02N00CF02 2 2.00 0.079 — — 0.20 0.008 0.20 0.008 8.97 0.353 7167421 EC030M03N00CF02 EC030M03N00CF02 3 3.00 0.118 — — 0.20 0.008 0.20 0.008 9.60 0.378 7167430 EC040M04N00CF02 EC040M04N00CF02 4 4.00 0.158 — — 0.20 0.008 0.20 0.008 10.19 0.401 7167439 EC050M05N00CF03 EC050M05N00CF03 5 5.00 0.197 — — 0.30 0.012 0.30 0.012 12.20 0.482 7167447 R — Right EC014M1BR06CF01 EC014M1BR06CF01 1B 1.40 0.055 6.000 — — — 0.15 0.006 9.00 0.355 7167409 EC020M02R06CF02 EC020M02R06CF02 2 2.00 0.079 6.000 — — — 0.20 0.008 8.97 0.353 7167428 EC030M03R06CF02 EC030M03R06CF02 3 3.00 0.118 6.000 — — — 0.20 0.008 9.60 0.378 7167437 EC040M04R06CF02 EC040M04R06CF02 4 4.00 0.158 6.000 — — — 0.20 0.008 10.19 0.401 7167446 A61 kennametal.com
