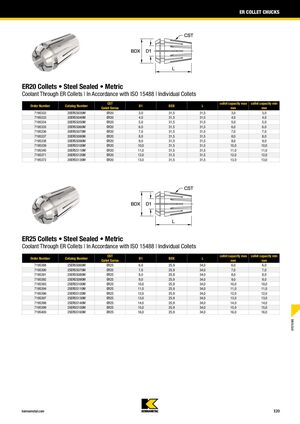

Цанги ER20 • Стальные герметичные • Метрические
Цанги ER со сквозной подачей СОЖ | В соответствии с ISO 15488 | Отдельные цанги
| Номер заказа | Номер каталога | Серия цангового патрона CST | D1 | BDX | L | Максимальная емкость цанги, мм | Минимальная емкость цанги, мм |
|---|---|---|---|---|---|---|---|
| 7195332 | 20ERSS030M | ER20 | 3,0 | 31,5 | 31,5 | 3,0 | 3,0 |
| 7195333 | 20ERSS040M | ER20 | 4,0 | 31,5 | 31,5 | 4,0 | 4,0 |
| 7195334 | 20ERSS050M | ER20 | 5,0 | 31,5 | 31,5 | 5,0 | 5,0 |
| 7195335 | 20ERSS060M | ER20 | 6,0 | 31,5 | 31,5 | 6,0 | 6,0 |
| 7195336 | 20ERSS070M | ER20 | 7,0 | 31,5 | 31,5 | 7,0 | 7,0 |
| 7195337 | 20ERSS080M | ER20 | 8,0 | 31,5 | 31,5 | 8,0 | 8,0 |
| 7195338 | 20ERSS090M | ER20 | 9,0 | 31,5 | 31,5 | 9,0 | 9,0 |
| 7195339 | 20ERSS100M | ER20 | 10,0 | 31,5 | 31,5 | 10,0 | 10,0 |
| 7195340 | 20ERSS110M | ER20 | 11,0 | 31,5 | 31,5 | 11,0 | 11,0 |
| 7195371 | 20ERSS120M | ER20 | 12,0 | 31,5 | 31,5 | 12,0 | 12,0 |
| 7195372 | 20ERSS130M | ER20 | 13,0 | 31,5 | 31,5 | 13,0 | 13,0 |
Цанги ER25 • Стальные герметичные • Метрические
Цанги ER со сквозной подачей СОЖ | В соответствии с ISO 15488 | Отдельные цанги
| Номер заказа | Номер каталога | Серия цангового патрона CST | D1 | BDX | L | Максимальная емкость цанги, мм | Минимальная емкость цанги, мм |
|---|---|---|---|---|---|---|---|
| 7195388 | 25ERSS060M | ER25 | 6,0 | 25,9 | 34,0 | 6,0 | 6,0 |
| 7195390 | 25ERSS070M | ER25 | 7,0 | 25,9 | 34,0 | 7,0 | 7,0 |
| 7195391 | 25ERSS080M | ER25 | 8,0 | 25,9 | 34,0 | 8,0 | 8,0 |
| 7195392 | 25ERSS090M | ER25 | 9,0 | 25,9 | 34,0 | 9,0 | 9,0 |
| 7195393 | 25ERSS100M | ER25 | 10,0 | 25,9 | 34,0 | 10,0 | 10,0 |
| 7195394 | 25ERSS110M | ER25 | 11,0 | 25,9 | 34,0 | 11,0 | 11,0 |
| 7195396 | 25ERSS120M | ER25 | 12,0 | 25,9 | 34,0 | 12,0 | 12,0 |
| 7195397 | 25ERSS130M | ER25 | 13,0 | 25,9 | 34,0 | 13,0 | 13,0 |
| 7195398 | 25ERSS140M | ER25 | 14,0 | 25,9 | 34,0 | 14,0 | 14,0 |
| 7195399 | 25ERSS150M | ER25 | 15,0 | 25,9 | 34,0 | 15,0 | 15,0 |
| 7195400 | 25ERSS160M | ER25 | 16,0 | 25,9 | 34,0 | 16,0 | 16,0 |
